SKU: GE160ES.EU

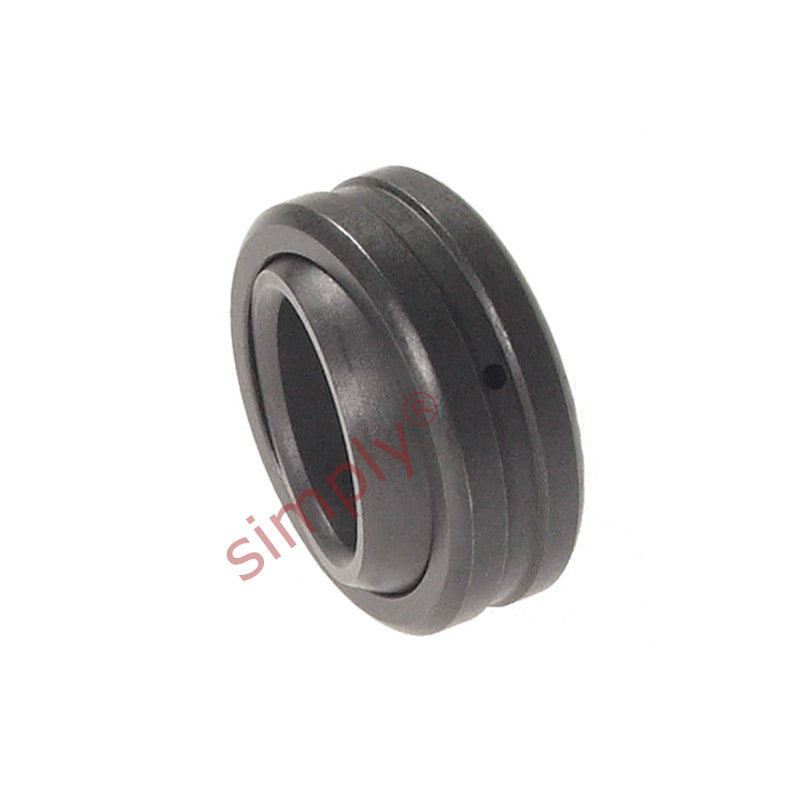

GE160ES Spherical Plain Bearing 160x230x105x80mm
GE160ES Spherical Plain Bearing 160x230x105x80mm
Regular price
$654.14
ex VAT
Regular price
Sale price
$654.14
ex VAT
In stock
Price Break
10+
$582.18
19+
$549.48
29+
$542.94
39+
$536.39
49+
$529.85
74+
$523.31
99+
$490.61
199+
$484.06
249+
$477.52
499+
$470.98
999+
$457.90
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 230mm
- Width:
- 105mm
Technical
Technical
| d | 160mm |
|---|---|
| D | 230mm |
| B | 105mm |
| C | 80mm |
| dk | 200mm |
| rs min | 1mm |
| r1s min | 1mm |
| Angle α | 8° |
| Dynamic load Co | 1360 kN |
| Static load Cor | 6800 kN |
| Weight | 14.01 kg |
