SKU: GE17.UK.2RS

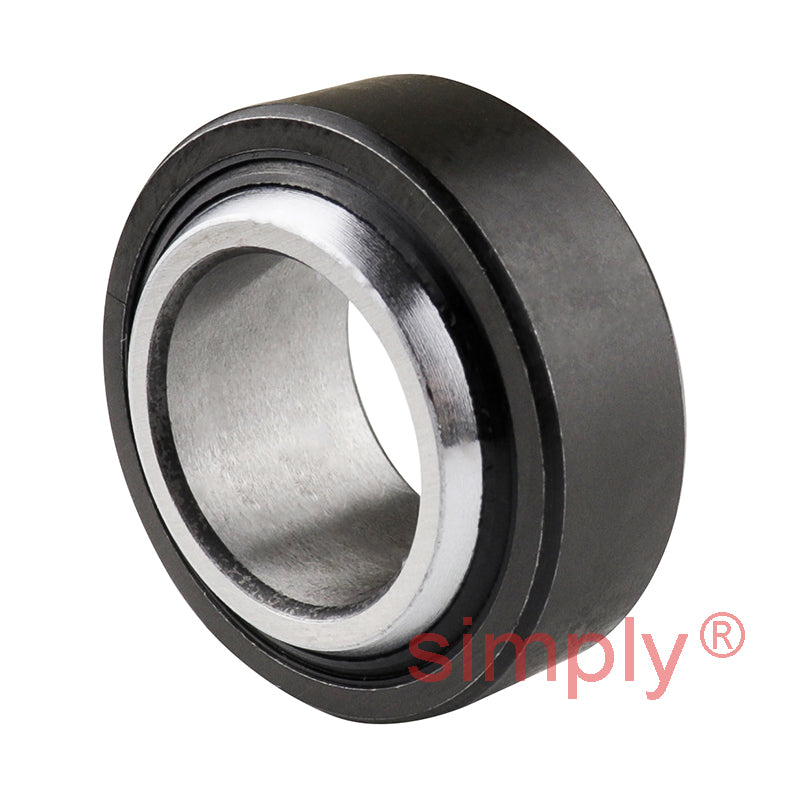

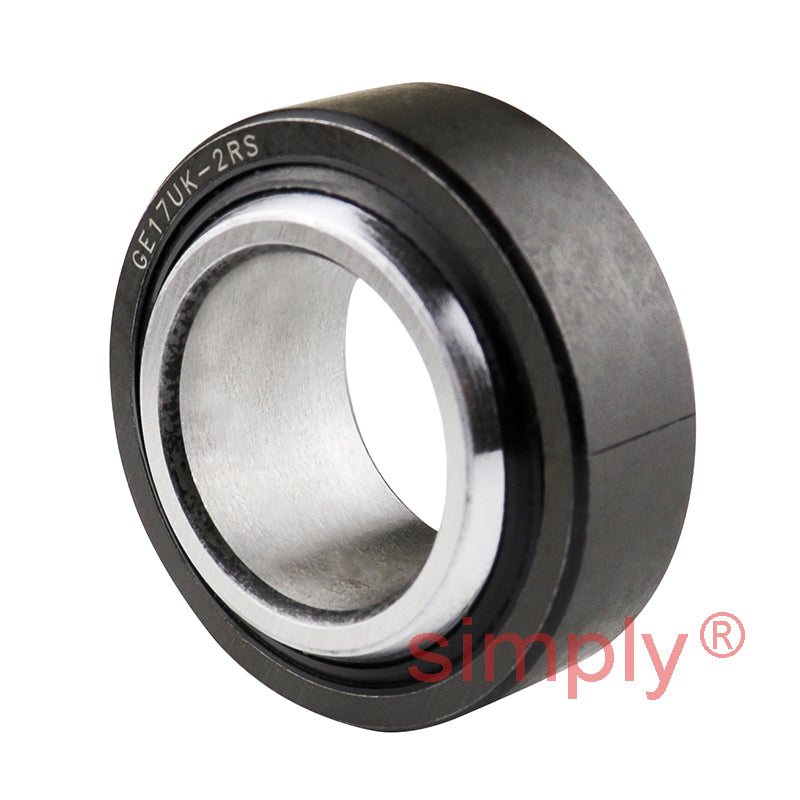

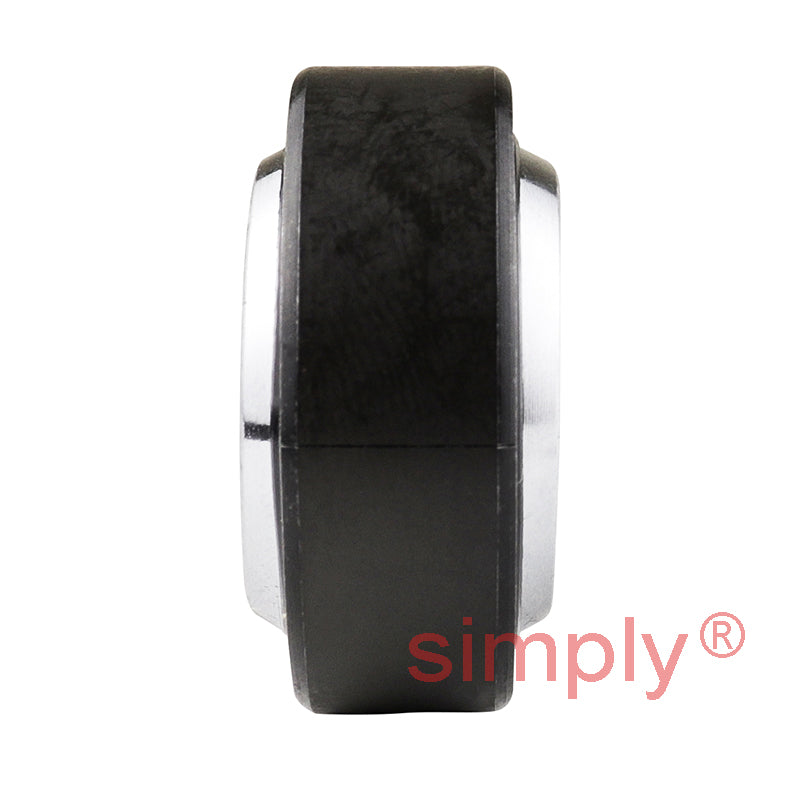

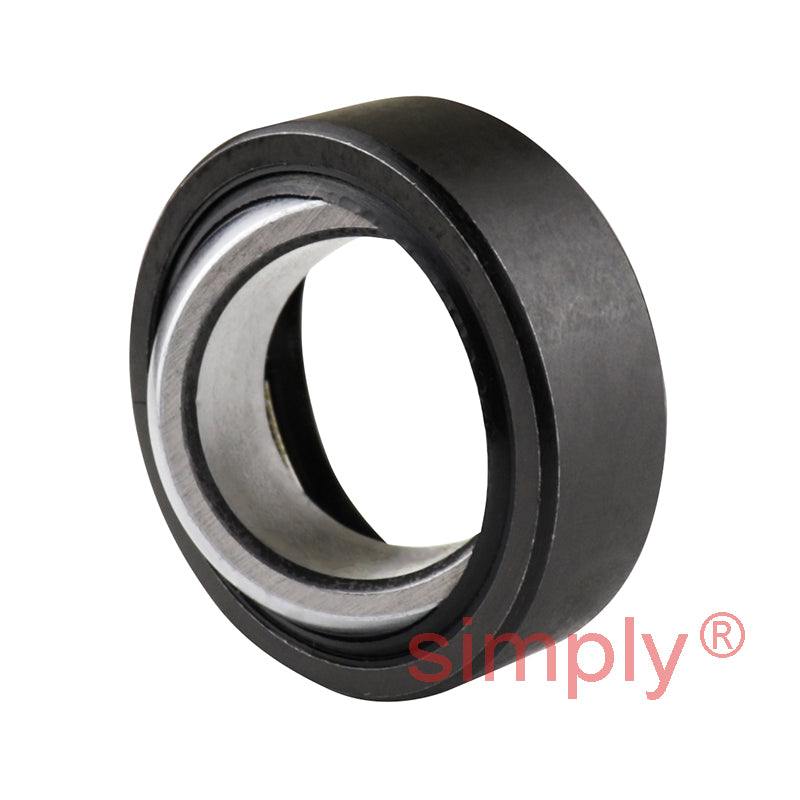

GE17UK2RS Rubber Sealed Spherical Plain Bearing with PTFE Lining 17x30x14x10mm
GE17UK2RS Rubber Sealed Spherical Plain Bearing with PTFE Lining 17x30x14x10mm
Regular price
$8.96
ex VAT
Regular price
Sale price
$8.96
ex VAT
In stock
Price Break
10+
$7.97
19+
$7.53
29+
$7.44
39+
$7.35
49+
$7.26
74+
$7.17
99+
$6.72
199+
$6.63
249+
$6.54
499+
$6.45
999+
$6.27
Couldn't load pickup availability
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 14mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 14mm |
| C | 10mm |
| dk | 25mm |
| rs min | 0.3mm |
| r1s min | 0.3mm |
| Angle α | 10° |
| Dynamic load Co | 21 kN |
| Static load Cor | 106 kN |
| Weight | 0.041 kg |
