SKU: GE200ES2RS.EU

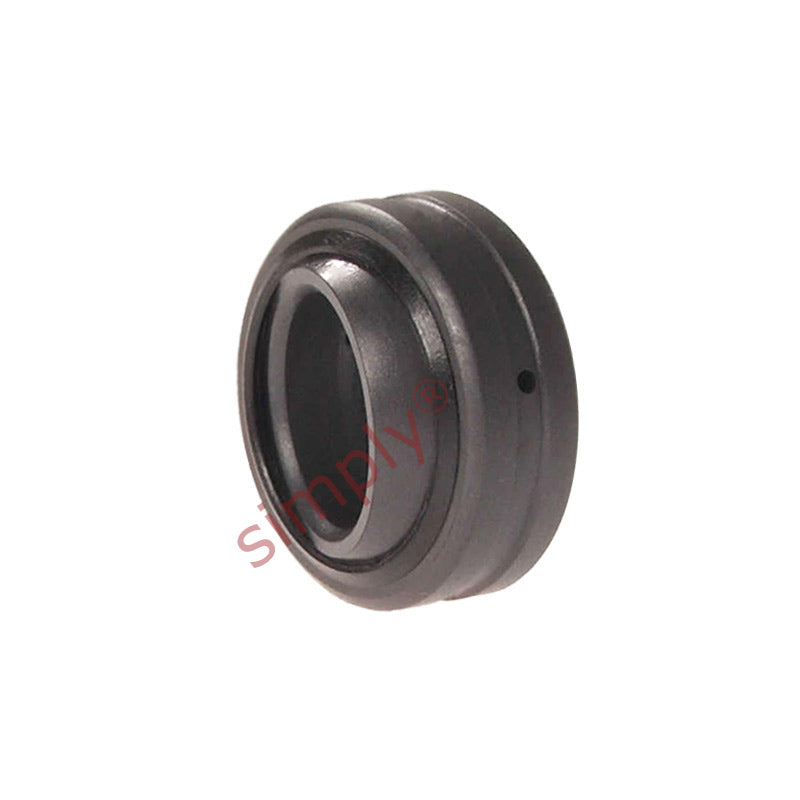

GE200ES2RS Rubber Sealed Spherical Plain Bearing 200x290x130x100mm
GE200ES2RS Rubber Sealed Spherical Plain Bearing 200x290x130x100mm
Regular price
$1,471.36
ex VAT
Regular price
Sale price
$1,471.36
ex VAT
In stock
Price Break
10+
$1,309.51
19+
$1,235.94
29+
$1,221.23
39+
$1,206.52
49+
$1,191.80
74+
$1,177.09
99+
$1,103.52
199+
$1,088.81
249+
$1,074.09
499+
$1,059.38
999+
$1,029.95
Couldn't load pickup availability
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 290mm
- Width:
- 130mm
Technical
Technical
| d | 200mm |
|---|---|
| D | 290mm |
| B | 130mm |
| C | 100mm |
| dk | 250mm |
| rs min | 1.1mm |
| r1s min | 1.1mm |
| Angle α | 7° |
| Dynamic load Co | 2120 kN |
| Static load Cor | 10600 kN |
| Weight | 28.03 kg |
