SKU: GE25ES.EU

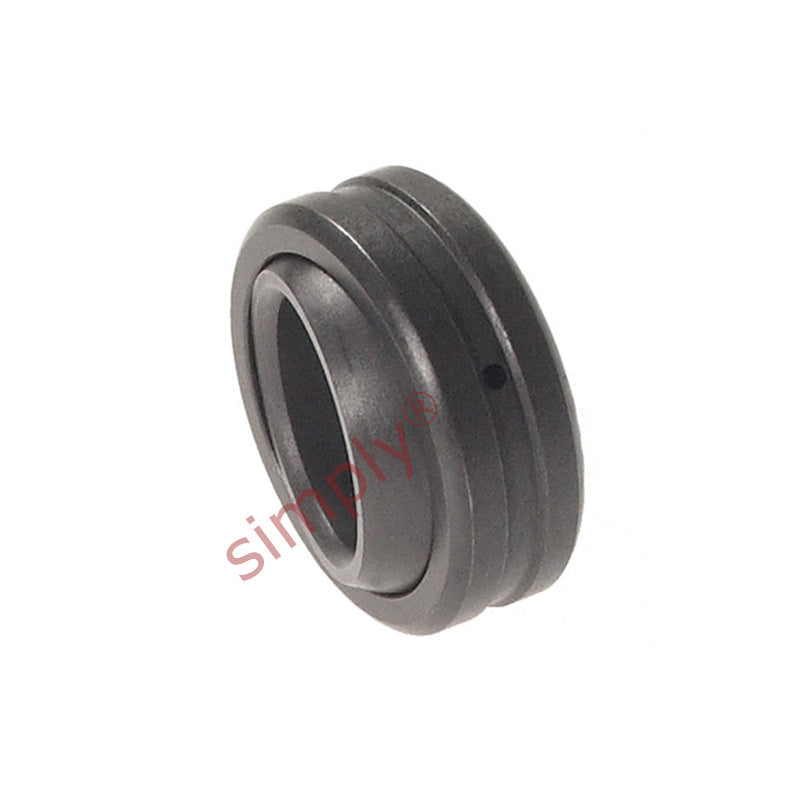

GE25ES Spherical Plain Bearing 25x42x20x16mm
GE25ES Spherical Plain Bearing 25x42x20x16mm
Regular price
$10.36
ex VAT
Regular price
Sale price
$10.36
ex VAT
In stock
Price Break
10+
$9.22
19+
$8.70
29+
$8.60
39+
$8.50
49+
$8.39
74+
$8.29
99+
$7.77
199+
$7.67
249+
$7.56
499+
$7.46
999+
$7.25
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 20mm |
| C | 16mm |
| dk | 35.5mm |
| rs min | 0.6mm |
| r1s min | 0.6mm |
| Angle α | 7° |
| Dynamic load Co | 48 kN |
| Static load Cor | 240 kN |
| Weight | 0.119 kg |
