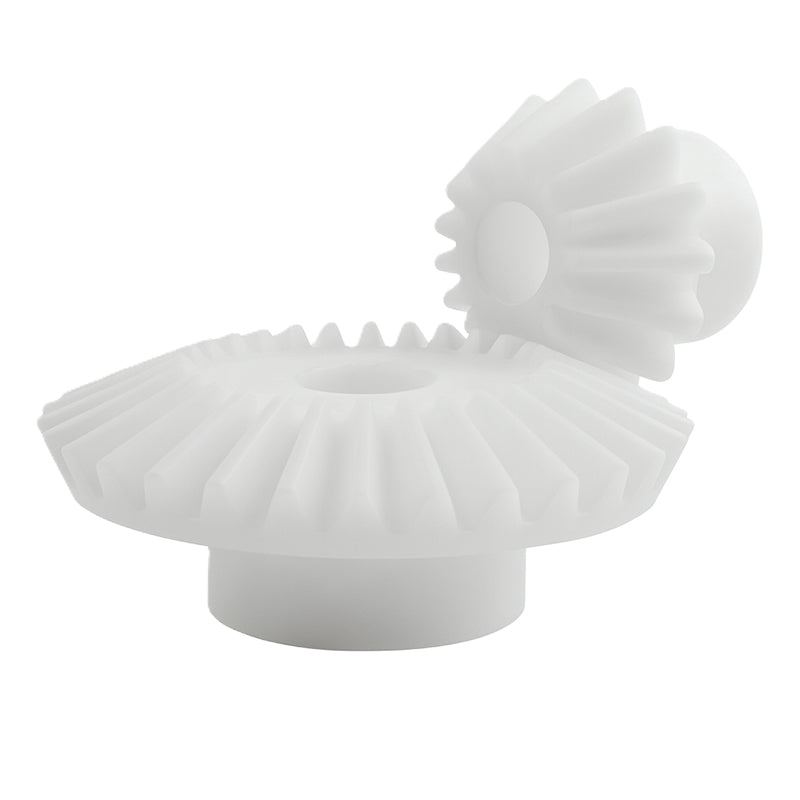

Driveflex GRWPRB30/2 Metric Hostaform Bevel Gear Pair with 3 MOD and 15/30 Teeth

Hostaform Bevel Gears: Hostaform bevel gears are precision-moulded components designed for smooth and efficient power transmission between intersecting shafts. These gears are suitable for a wide range of applications such as light industrial mechanisms, automation equipment, office machinery, food-processing systems, and environments where low noise and corrosion resistance are essential. Bevel gears are paired together and used to change the direction of power transmission as well as the speed. The reduction ratio varies between gear pairs but is greater for spiral bevel gears.
Lubrication: Many Hostaform gears can operate with minimal or even no lubrication thanks to their naturally low-friction properties. However, where loads, speeds, or environmental conditions are demanding, the use of compatible greases or food-safe lubricants may be required. Always ensure that the lubricant selected is suitable for acetal-based materials.
Material: Hostaform – an engineering thermoplastic offering excellent dimensional stability, low friction, high wear resistance, and superior moisture and chemical resistance. Ideal for applications requiring quiet running and corrosion-free performance.
Benefits: Lightweight, low-noise, corrosion-resistant

• DIN 3964, DIN 3967, DIN 3971
• Standard tolerances, unless otherwise stated ±0.25 mm
• Shaft axis to intersect within ±0.025mm
• Angular accuracy between shafts ±5mins
• Mounting distance tolerance ±0.05mm
• Bore tolerance H9
• 20° pressure angle
• Supplied in pairs
• White HOSTAFORM® C

Brand / Quality:

Drive-Flex - High Quality

Bore:

G1: 14mm / G2: 14mm

Material:

Hostaform

Number of Teeth:

15/30

Pitch Circle Diameter:

G1: 50.3mm / G2: 93mm
