SKU: GX17F-SKF

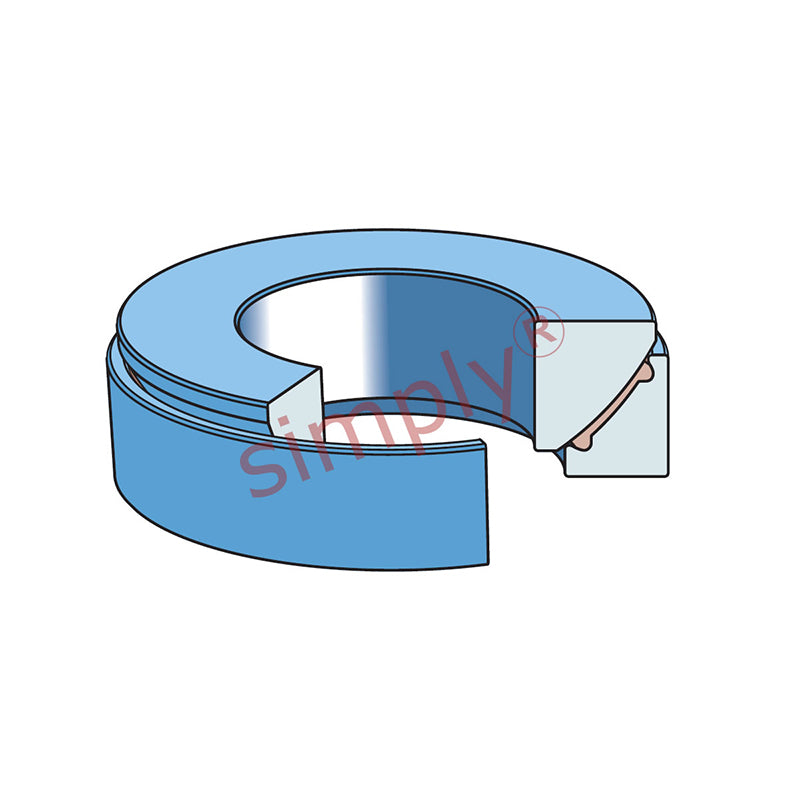

SKF GX17F Maintenance Free Thrust Spherical Plain Bearing 17x47x16mm
SKF GX17F Maintenance Free Thrust Spherical Plain Bearing 17x47x16mm
Regular price
$110.16
ex VAT
Regular price
Sale price
$110.16
ex VAT
Equivalent to: GE17AW GX17T
In stock
Price Break
10+
$98.04
19+
$92.53
29+
$91.43
39+
$90.33
49+
$89.23
74+
$88.13
99+
$82.62
199+
$81.52
249+
$80.42
499+
$79.32
999+
$77.11
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free spherical plain thrust bearings with sliding contact surface combination, steel/ PTFE composite. |
Equivalent: GE17AW GX17T
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 16mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| T | 16mm |
| Angle | 5 degree |
| Dynamic load | 36.5 kN |
| Static load | 58.5 kN |
| dk | 52mm |
| d1 | 43.5mm |
| D1 | 27mm |
| B | 11.8mm |
| C | 11.2mm |
| r1 min | 0.6mm |
| s | 11mm |
| da min | 34mm |
| Da max | 37mm |
| ra max | 0.6mm |
| Weight | 0.14 kg |
