SKU: GX70F-SKF

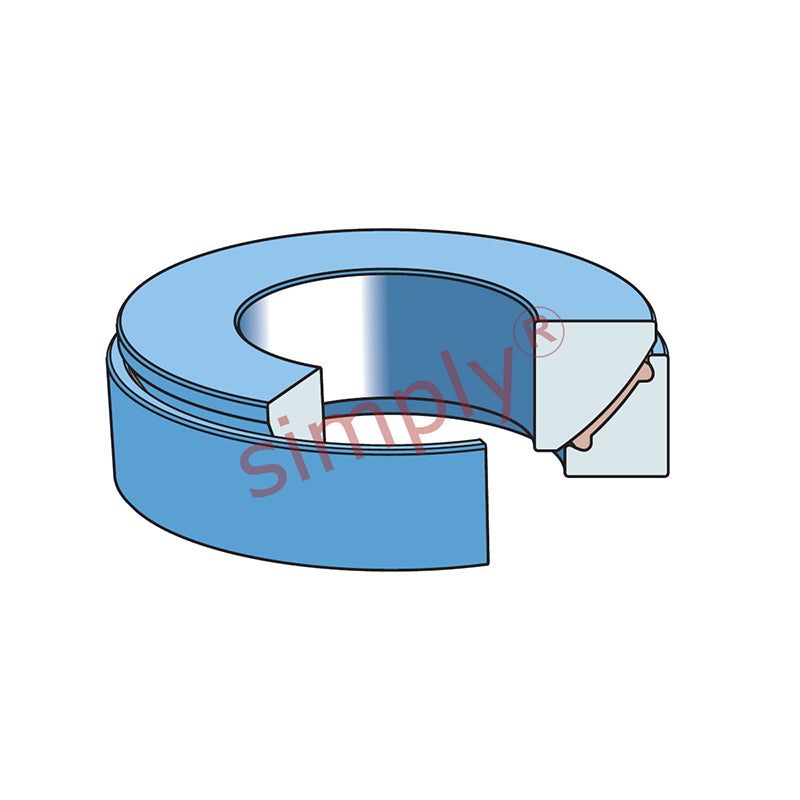

SKF GX70F Maintenance Free Thrust Spherical Plain Bearing 70x160x50mm
SKF GX70F Maintenance Free Thrust Spherical Plain Bearing 70x160x50mm
Regular price
$1,006.41
ex VAT
Regular price
Sale price
$1,006.41
ex VAT
Equivalent to: GE70AW GX70T
In stock
Price Break
10+
$895.70
19+
$845.38
29+
$835.32
39+
$825.26
49+
$815.19
74+
$805.13
99+
$754.81
199+
$744.74
249+
$734.68
499+
$724.62
999+
$704.49
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free spherical plain thrust bearings with sliding contact surface combination, steel/ PTFE composite. |
Equivalent: GE70AW GX70T
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 160mm
- Width:
- 50mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 160mm |
| T | 50mm |
| Angle | 5 degree |
| Dynamic load | 475 kN |
| Static load | 750 kN |
| dk | 176mm |
| d1 | 153mm |
| D1 | 94.5mm |
| B | 42mm |
| C | 36.5mm |
| r1 min | 1mm |
| s | 35mm |
| da min | 121mm |
| Da max | 125mm |
| ra max | 1mm |
| Weight | 5.4 kg |
