SKU: HEATER200-FAG

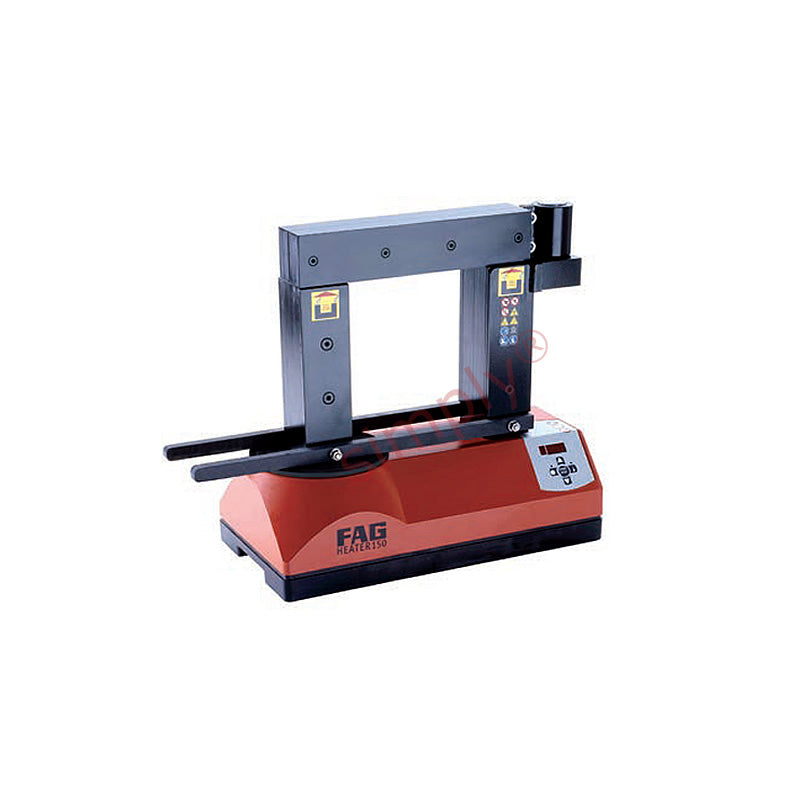

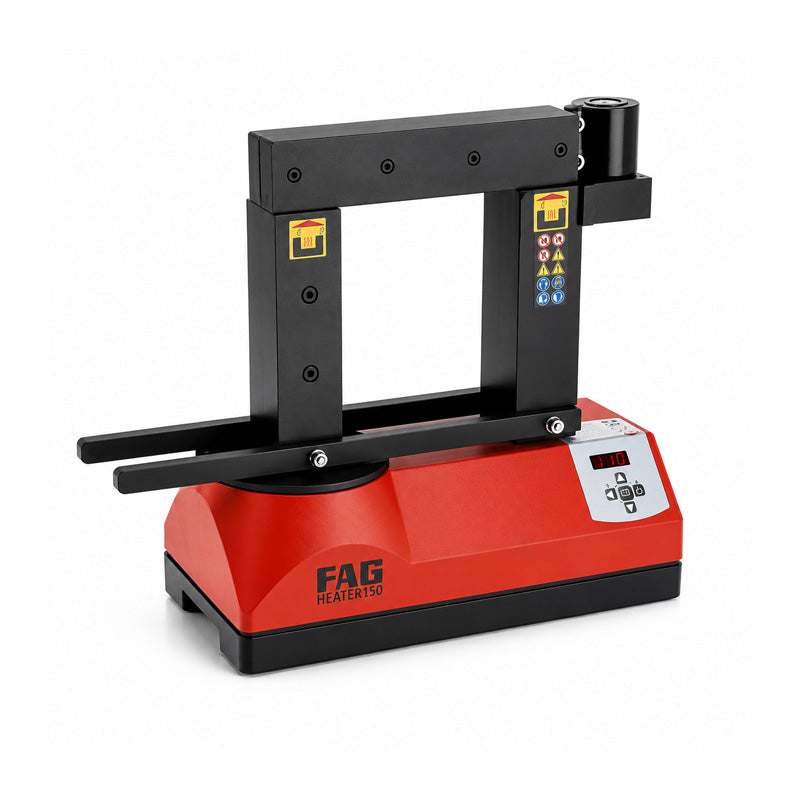

FAG HEATER200 400V Portable Induction Bearing Heater for up to 200 kg Bearings
FAG HEATER200 400V Portable Induction Bearing Heater for up to 200 kg Bearings
Regular price
$7,558.11
ex VAT
Regular price
Sale price
$7,558.11
ex VAT
In stock
Price Break
10+
$6,726.72
19+
$6,348.81
29+
$6,273.23
39+
$6,197.65
49+
$6,122.07
74+
$6,046.49
99+
$5,668.58
199+
$5,593.00
249+
$5,517.42
499+
$5,441.84
999+
$5,290.68
Couldn't load pickup availability
Description
Description
FAG Heater200 Induction Heater: This table unit for mobile and fixed use is designed to heat bearings and other rotationally symmetrical parts made from steel so that they can be mounted more easily on a shaft to achieve a tight fit. Horizontal coil position allows uniform heating and prevents bearing damage from brinelling caused by too rapid heating of the workpiece. This device is suitable for work with a mass of up to 200kg. An infrared remote control is provided with this heating device, allowing the user to start the heating process from a safe distance.
Benefits: 5 year return to base warranty, Pre-programmable temperature and timescales minimise temperature dfiferences between the inner and outer ring.
Benefits: 5 year return to base warranty, Pre-programmable temperature and timescales minimise temperature dfiferences between the inner and outer ring.
- Brand / Quality:
- FAG - High Quality
- Size:
- Up to: 200kg
Technical
Technical
| Max power | 12.8 kVA |
|---|---|
| Voltage/frequency | 400 V 50/60 Hz |
| Current | 20 A |
| Residual magnetism | < 2 A/cm |
| Weight | 85 kg |
| Length | 695mm |
| Width | 330mm |
| Height | 370mm |
| Clear width | 210mm |
| Clear height | 220mm |
| Minimum workpiece bore (with accessory ledge) | 20mm |
| Maximum workpiece mass | 200 kg |
