SKU: HMV18E-BGL

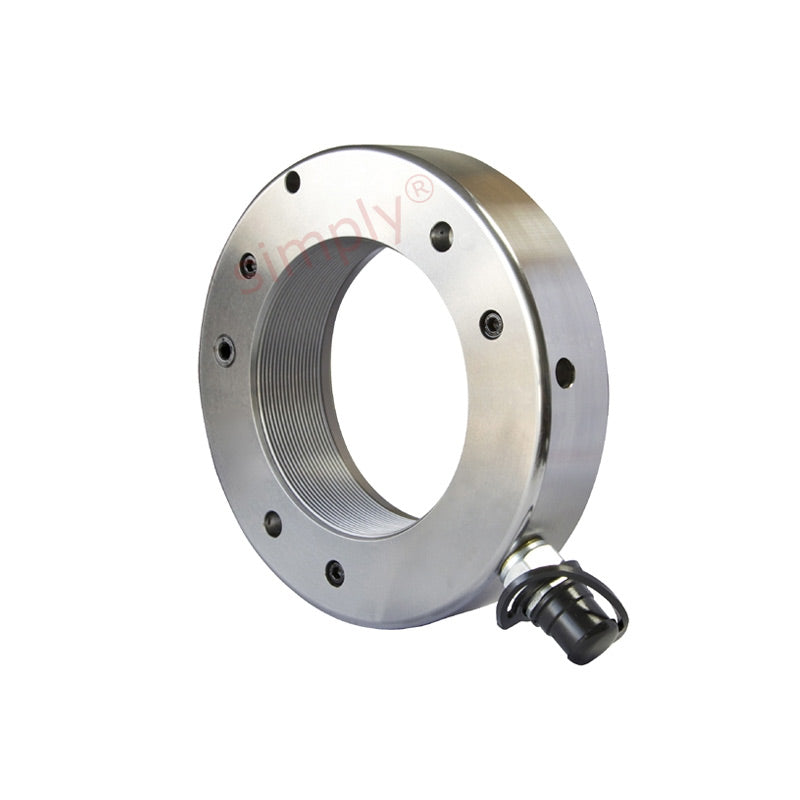

BGL HMV18E Metric Hydraulic Nut M90x2 Thread - Allow 1-2 Days
BGL HMV18E Metric Hydraulic Nut M90x2 Thread - Allow 1-2 Days
Regular price
$1,318.54
ex VAT
Regular price
Sale price
$1,318.54
ex VAT
In stock
Price Break
10+
$1,173.50
19+
$1,107.57
29+
$1,094.39
39+
$1,081.20
49+
$1,068.02
74+
$1,054.83
99+
$988.91
199+
$975.72
249+
$962.53
499+
$949.35
999+
$922.98
Couldn't load pickup availability
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- M90x2
- Inside Diameter:
- 90.5mm
- Outside Diameter:
- 156mm
- Width:
- 38mm
- Flange Width:
- 5mm
Technical
Technical
| G Thread | M90x2 |
|---|---|
| d1 | 90.5mm |
| d2 | 147mm |
| d3 | 156mm |
| B | 38mm |
| B1 | 5mm |
| Permitted piston displacement | 5mm |
| Piston area | 4700mm2 |
