SKU: HRC110B+HRC110B+HRC110I-MB

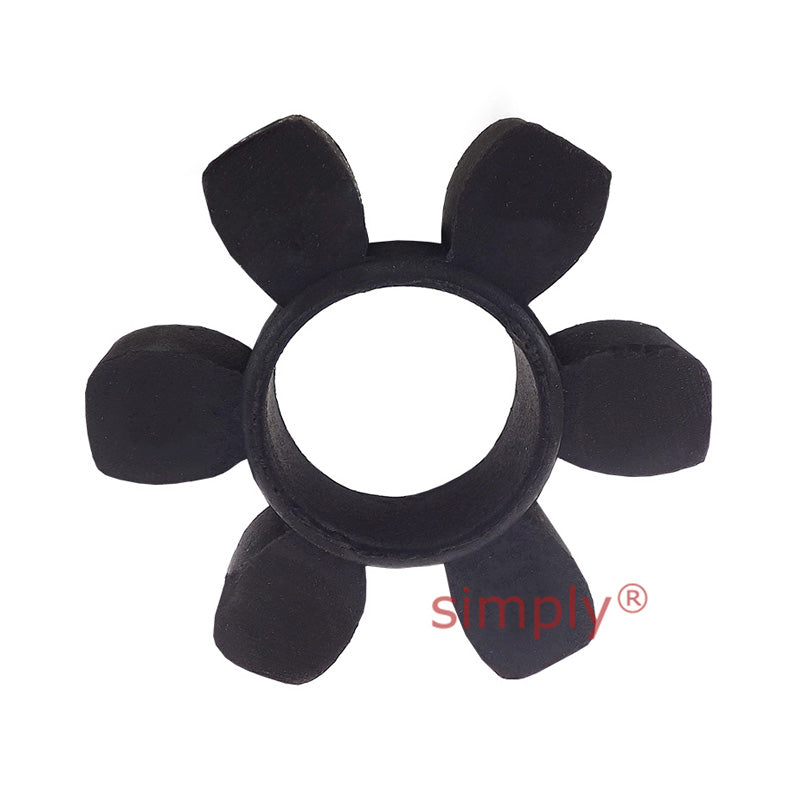

Major Brand HRC110B Coupling Assembly Pilot Bored Nominal 10mm Max Bore 55mm with Natural Rubber Insert
Equivalent to: HRC110B HRC110B HRC110I DRC110B+DRC110B+DRC110I
In stock
Price Break
Couldn't load pickup availability
Description
Branded HRC Coupling Assembly Pilot Bored with Natural Rubber Insert: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.
Supplied as a complete coupling assembly. The assembly comprises of 2 coupling flanges and a matching insert. The coupling is the BB type which has pilot bores and will require machining to your application requirements.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
Equivalent: HRC110B HRC110B HRC110I DRC110B+DRC110B+DRC110I
- Brand / Quality:
- Major Brand - High Quality
Technical
| Nominal Torque | 160 Nm |
|---|---|
| Overall Diameter A | 112mm |
| Hub Diameter B | 100mm |
| Assembled Length F | 45.5mm |
| Insert Bore Dia E | 45mm |
| Insert Width G | 29.5mm |
| Parallel Misalignment | 0.3mm |
| Assembly Weight | 6.45kg |
| L width | 119.5mm<sup>3</sup> |
| B Type - Max Bore | 55mm |
| B Type - Pilot Bore | 10mm |
| B Type - Keyway Screw Size | M10mm |
| B Type - Shoulder Width D | 37mm |
| B Type - Hub Width C | 45.5mm |
| Max Power at 100 rpm | 1.68 kW |
| Max Power at 200 rpm | 3.35 kW |
| Max Power at 400 rpm | 6.7 kW |
| Max Power at 600 rpm | 10.1 kW |
| Max Power at 720 rpm | 12.1 kW |
| Max Power at 800 rpm | 13.4 kW |
| Max Power at 960 rpm | 16.1 kW |
| Max Power at 1200 rpm | 20.1 kW |
| Max Power at 1440 rpm | 24.1 kW |
| Max Power at 1600 rpm | 26.8 kW |
| Max Power at 1800 rpm | 30.2 kW |
| Max Power at 2000 rpm | 33.5 kW |
| Max Power at 2200 rpm | 36.9 kW |
| Max Power at 2400 rpm | 40.2 kW |
| Max Power at 2600 rpm | 43.6 kW |
| Max Power at 2880 rpm | 48.3 kW |
| Max Power at 3000 rpm | 50.3 kW |
| Max Power at 3600 rpm | 60.3 kW |
| Nominal Torque (Nm) | 160 Nm |
| Max Torque | 360 Nm |
