SKU: K000

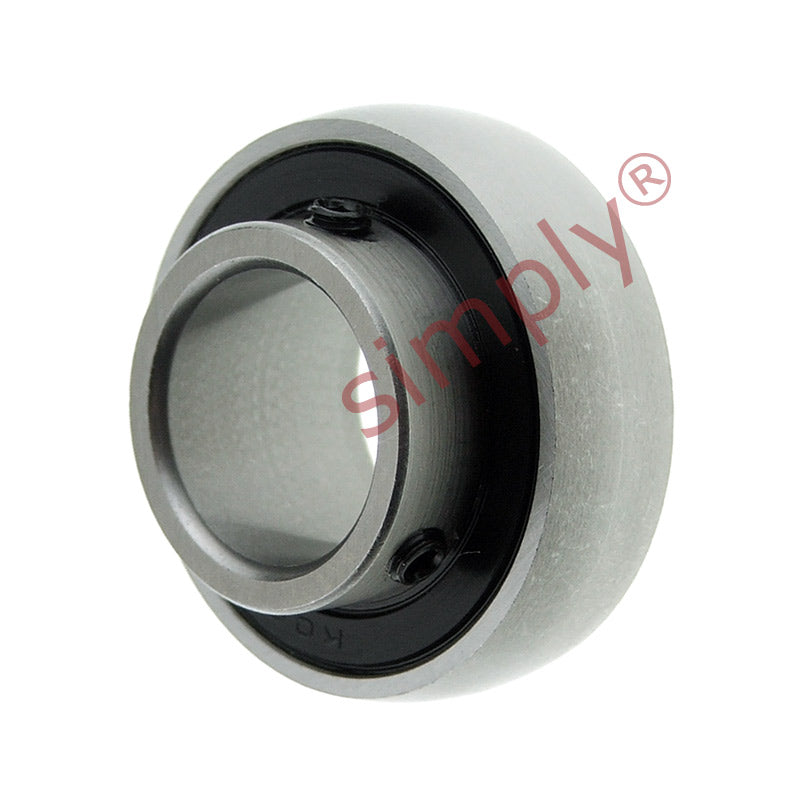

K000 Metric Grub Screw Type Bearing Insert with 10mm Bore 26mm Outside Dia
K000 Metric Grub Screw Type Bearing Insert with 10mm Bore 26mm Outside Dia
Regular price
$11.39
ex VAT
Regular price
Sale price
$11.39
ex VAT
In stock
Price Break
10+
$10.14
19+
$9.57
29+
$9.45
39+
$9.34
49+
$9.23
74+
$9.11
99+
$8.54
199+
$8.43
249+
$8.31
499+
$8.20
999+
$7.97
Couldn't load pickup availability
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Style:
- K
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 26mm |
| Bi | 14mm |
| Be | 8mm |
| r | 0.5mm |
| n | 4mm |
| G | 3mm |
| W | 14.75mm |
| Grub screw | M3x0.35 |
| Dynamic load | 4606N ~ 469.681 kgf |
| Static load | 1906N ~ 194.358 kgf |
| Weight | 0.02 kg |
