SKU: KGBA50100PPAS-INA

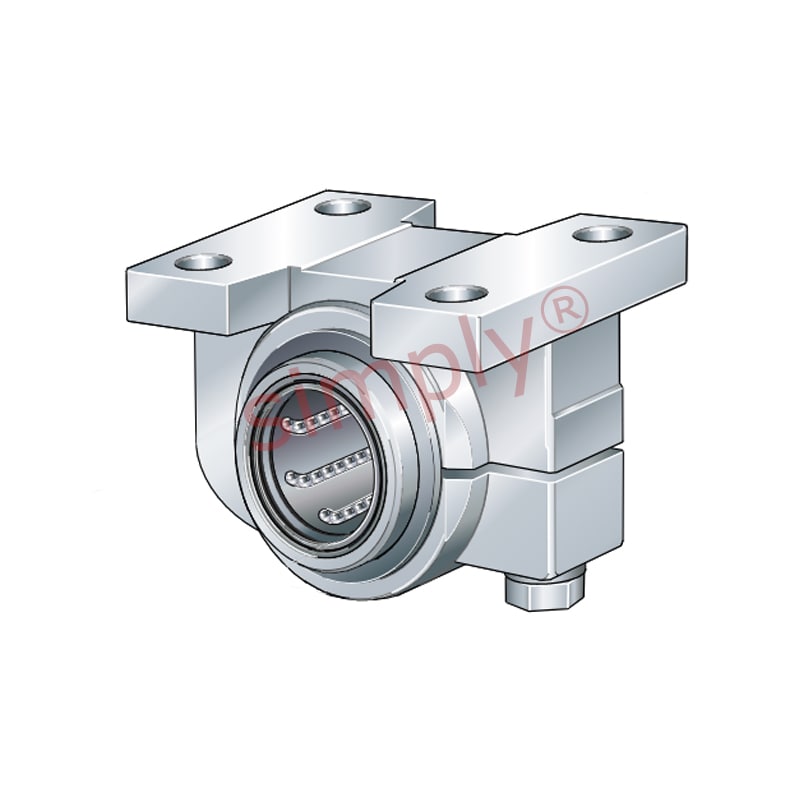

INA KGBA50100PPAS Linear Bearing
INA KGBA50100PPAS Linear Bearing
Regular price
$261.44
ex VAT
Regular price
Sale price
$261.44
ex VAT
Equivalent to: KGBA50PPAS
In stock
Price Break
10+
$232.68
19+
$219.61
29+
$217.00
39+
$214.38
49+
$211.77
74+
$209.15
99+
$196.08
199+
$193.47
249+
$190.85
499+
$188.24
999+
$183.01
Couldn't load pickup availability
Description
Description
Equivalent: KGBA50PPAS
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
Technical
Technical
| Fw | 50mm (Tolerance: +0.013/-0.002) |
|---|---|
| H | 98mm |
| B | 130mm |
| L | 100mm (Tolerance: h12) |
| Number of rows of balls | 6 |
| A3 | 34mm |
| A5 | 65mm (Tolerance: +0.015/-0.015) |
| H2 | 50mm (Tolerance: +0.015/-0.015) |
| H6 | 12.5mm (Tolerance: 0/-0.5) |
| JB | 108mm (Tolerance: +0.2/-0.2) |
| JL | 50mm (Tolerance: +0.2/-0.2) |
| K5 | M8 (for fixing screws to ISO 4762-8.8<br>If there is a possibility of setting, the screws should be secured against rotation |
| K8 Lubrication nipple | NIPA2 |
| L4 | 70mm |
| L5 | 72mm |
| N1 | 9.2mm |
| N3 | 15mm |
| Mass | 1.88 kg |
| Dynamic load C | 8700 N<br>The basic load ratings are valid only for hardened (650 HV + 165 HV) and ground shaft raceways |
| Static load C0 | 6300 N<br>The basic load ratings are valid only for hardened (650 HV + 165 HV) and ground shaft raceways |
