SKU: KMFE13-SKF

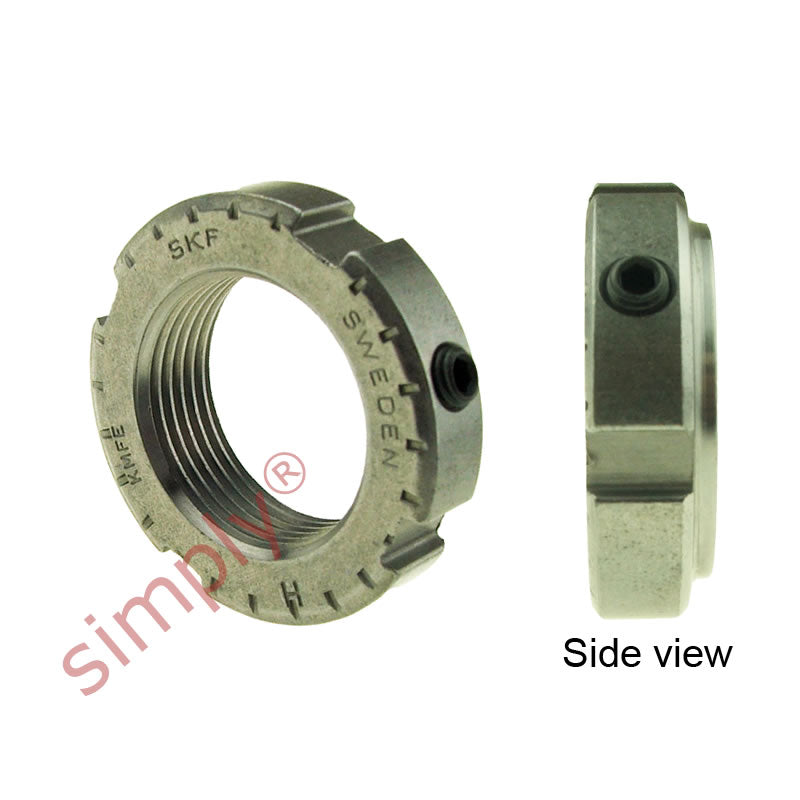

SKF KMFE13 Lock Nut with Locking Screw M65x2mm
SKF KMFE13 Lock Nut with Locking Screw M65x2mm
Regular price
$28.44
ex VAT
Regular price
Sale price
$28.44
ex VAT
In stock
Price Break
10+
$25.31
19+
$23.89
29+
$23.61
39+
$23.32
49+
$23.04
74+
$22.75
99+
$21.33
199+
$21.05
249+
$20.76
499+
$20.48
999+
$19.91
Couldn't load pickup availability
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M65x2
Technical
Technical
| d1 | 76mm |
|---|---|
| d3 | 85mm |
| B | 15mm |
| B1 | 12mm |
| b | 7mm |
| h | 3mm |
| Axial load capacity | 108 kN |
| Looseing torque | 130 Nm |
| Weight | 0.23 kg |
| G | M65x2 |
| Designation | KMFE13 |
| Spanner | HN13 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
