SKU: KMTA22-SKF

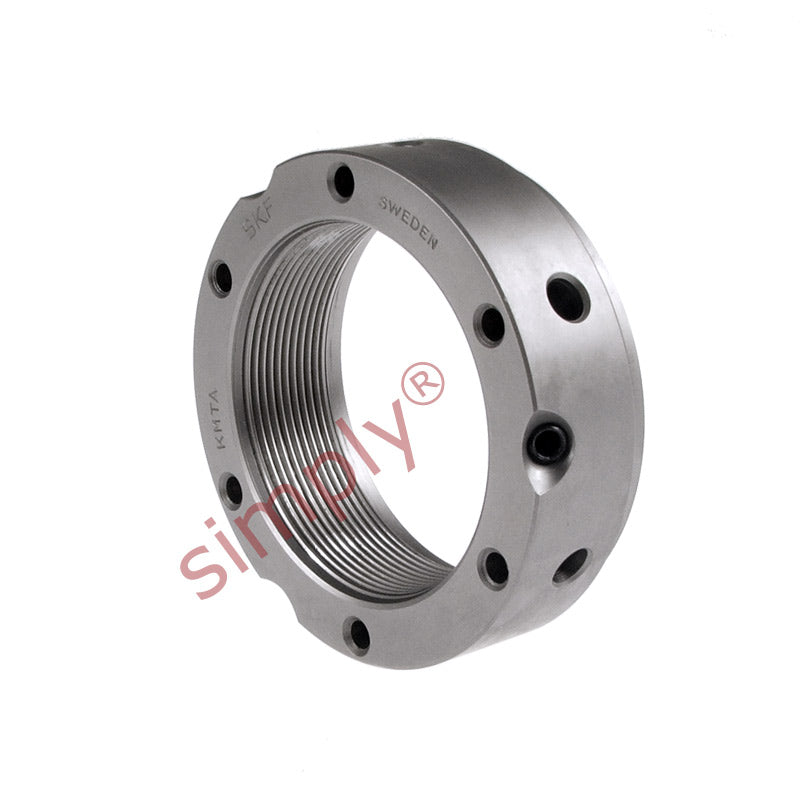

SKF KMTA22 Precision Locking Nut with Locking Pins M110x2mm
SKF KMTA22 Precision Locking Nut with Locking Pins M110x2mm
Regular price
$334.93
ex VAT
Regular price
Sale price
$334.93
ex VAT
In stock
Price Break
10+
$298.09
19+
$281.34
29+
$277.99
39+
$274.64
49+
$271.29
74+
$267.94
99+
$251.20
199+
$247.85
249+
$244.50
499+
$241.15
999+
$234.45
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M110x2
Technical
Technical
| G | M110x2 |
|---|---|
| d2 | 140mm |
| d3 | 132mm |
| d4 | 112mm |
| B | 32mm |
| J1 | 128mm |
| J2 | 17mm |
| N1 | 6.4mm |
| N2 | 8mm |
| Axial load capacity | 800 kN |
| Loosening torque | 960 Nm |
| Weight | 1.45 kg |
| Spanner | B135-145 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA22 |
