SKU: LM.E.12.UU.EU-CLR

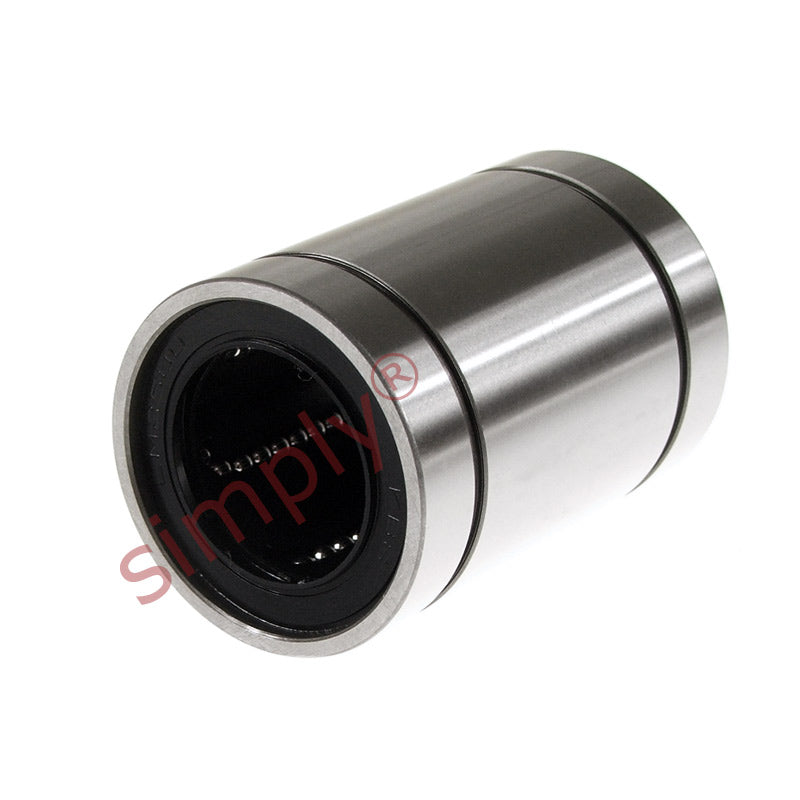

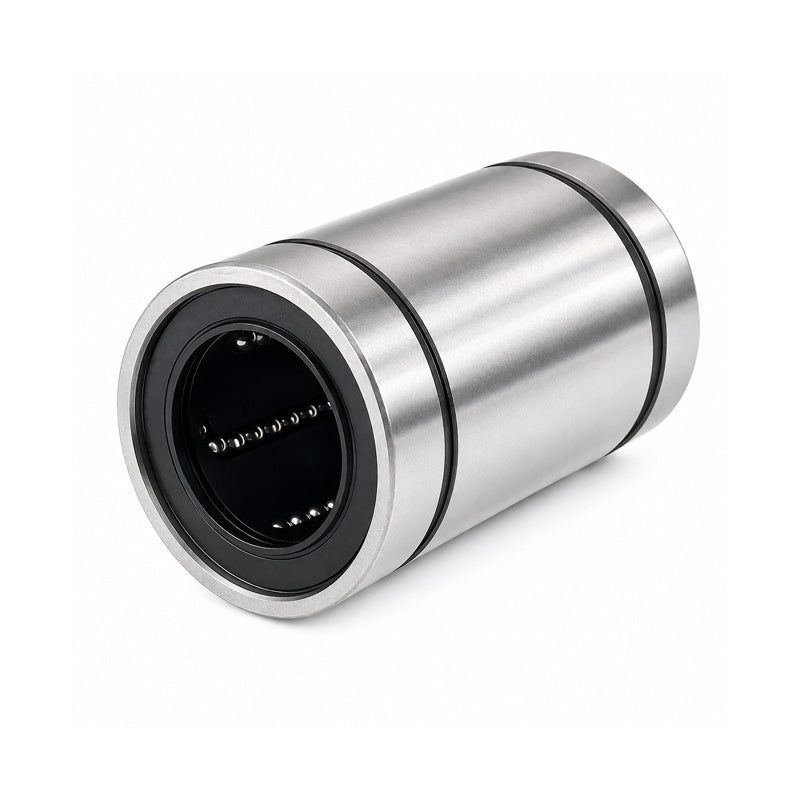

Budget Clearance LME12UU Closed Linear Ball Bushing with Rubber Seals 12x21.5x32mm
In stock
Price Break
Couldn't load pickup availability
Description
LME European Metric Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 21.5mm
- Length:
- 32mm
Technical
| Inside Diameter dr | 12mm Tol +8 to -0µm |
|---|---|
| Outside Diameter D | 21.5mm Tol +0 to -200µm |
| Length L | 32mm Tol +0 to -200µm |
| W | 1.3mm |
| D1 | 21mm |
| B | 22.9mm |
| Eccentricity | 12?m |
| Dynamic load C | 60 kgf |
| Static load C<sub>o</sub> | 51 kgf |
| Weight | 41 g |
| Number of ball rows | 4 |
| Tolerances dr & D | Apply to closed type only |
