SKU: LMB.81420

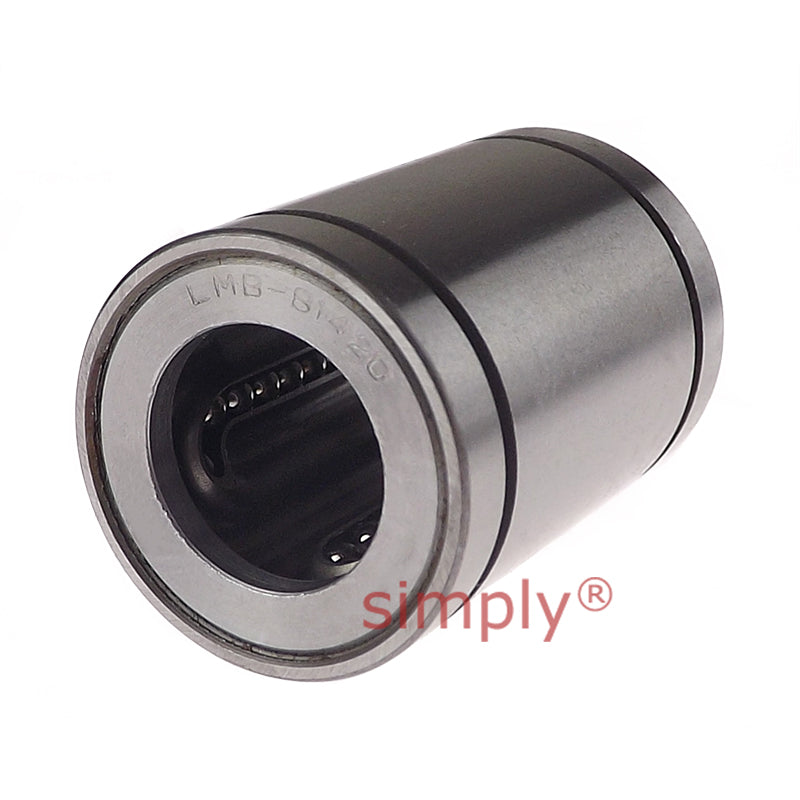

IKO LMB81420UU Imperial Closed Linear Bushing With Rubber Seals 0.5x0.875x1.25 inch
In stock
Price Break
Couldn't load pickup availability
Description
LMB Imperial Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Length:
- 31.75mm = 1.25 (1-1/4) inch
- Seals / Shields:
- Rubber Sealed
Technical
| Inside Diameter | 0.5 inch |
|---|---|
| Outside Diameter | 0.875 inch |
| Width | 1.25 inch |
