SKU: LRJA1-1/8

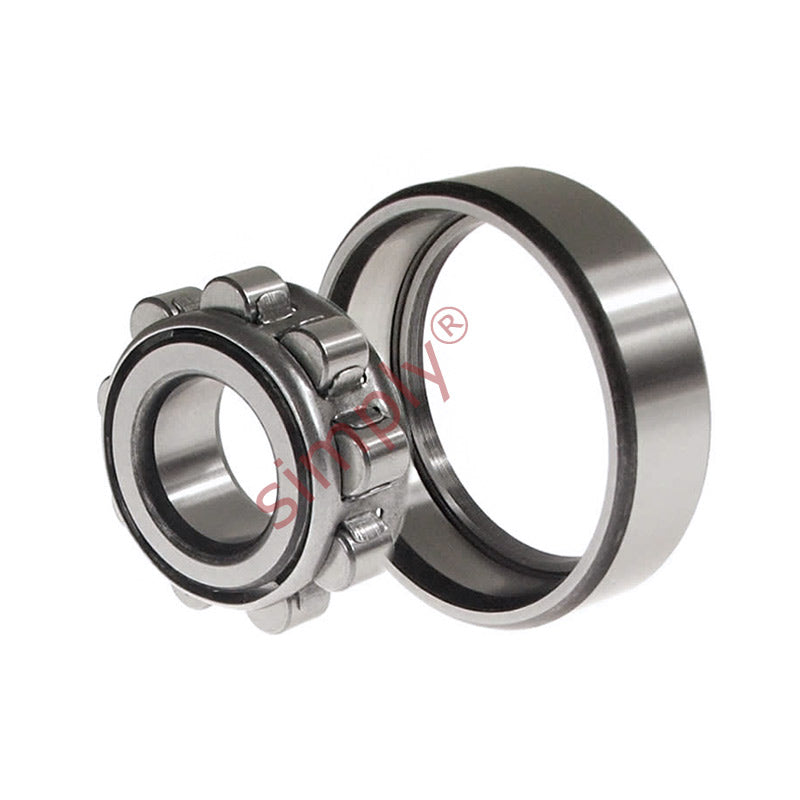

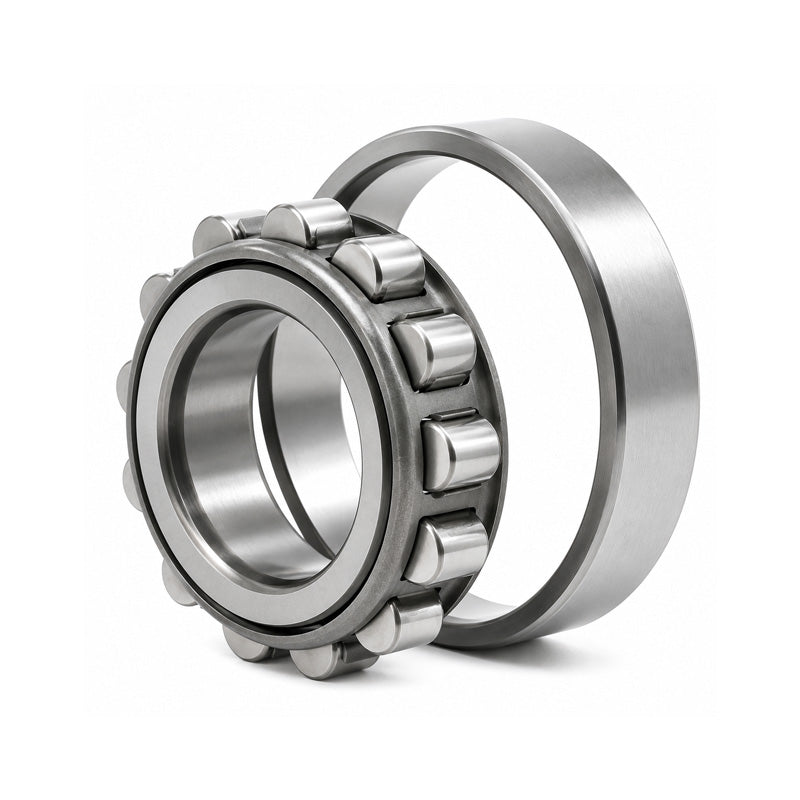

LRJA1-1/8 Cylindrical Roller Bearing 1-1/8x2-1/2x5/8 inch
LRJA1-1/8 Cylindrical Roller Bearing 1-1/8x2-1/2x5/8 inch
Regular price
$73.28
ex VAT
Regular price
Sale price
$73.28
ex VAT
In stock
Price Break
10+
$65.22
19+
$61.56
29+
$60.82
39+
$60.09
49+
$59.36
74+
$58.62
99+
$54.96
199+
$54.23
249+
$53.49
499+
$52.76
999+
$51.30
Couldn't load pickup availability
Description
Description
LRJA Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the cage and rollers are assembled, the outer raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Permits axial movement / expansion, ease of assembly and fitting
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 28.58mm = 1.125 (1-1/8) inch |
|---|---|
| D | 63.5mm = 2.5 (2-1/2) inch |
| B | 15.88mm = 0.625 (5/8) inch |
