SKU: LS150190-MB

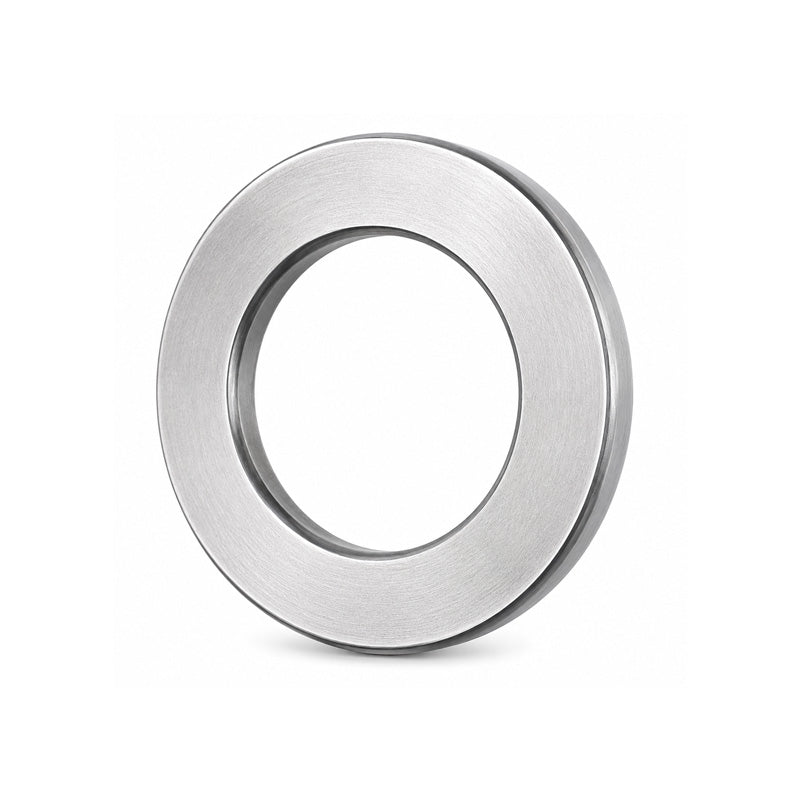

Major Brand LS150190 Raceway Washer Series LS 150x190x9.5mm
Major Brand LS150190 Raceway Washer Series LS 150x190x9.5mm
Regular price
$136.65
ex VAT
Regular price
Sale price
$136.65
ex VAT
In stock
Price Break
10+
$121.62
19+
$114.79
29+
$113.42
39+
$112.05
49+
$110.69
74+
$109.32
99+
$102.49
199+
$101.12
249+
$99.75
499+
$98.39
999+
$95.66
Couldn't load pickup availability
Description
Description
|
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 190mm
- Width:
- 9.5mm
Technical
Technical
| d | 150mm |
|---|---|
| d1 | 188mm |
| D | 190mm |
| D1 | 152mm |
| B | 9.5mm |
| r1r2 | 1mm |
| Weight | 795 g |
