SKU: LS5070-EU

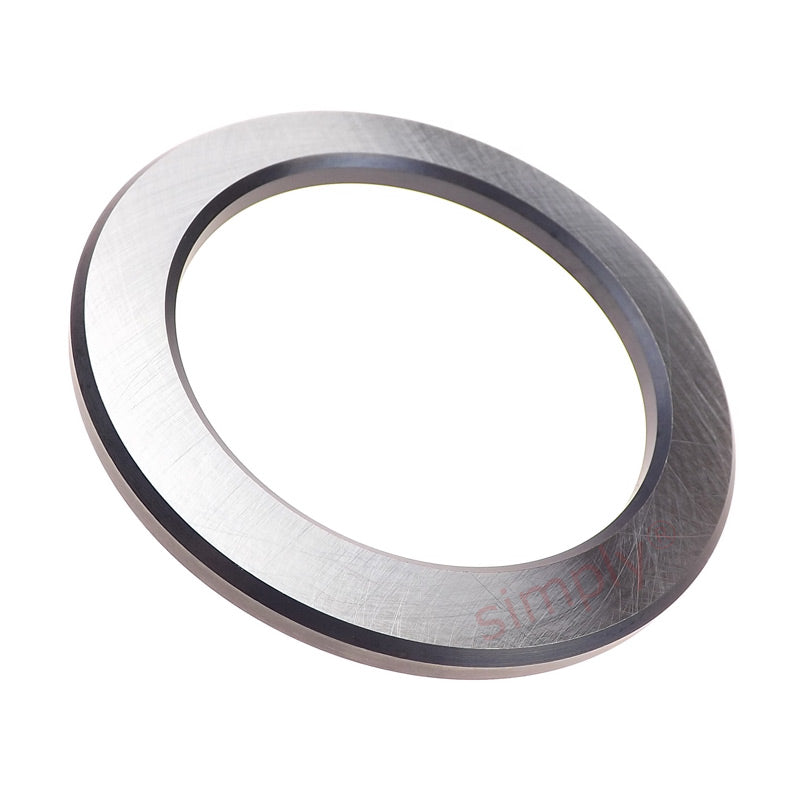

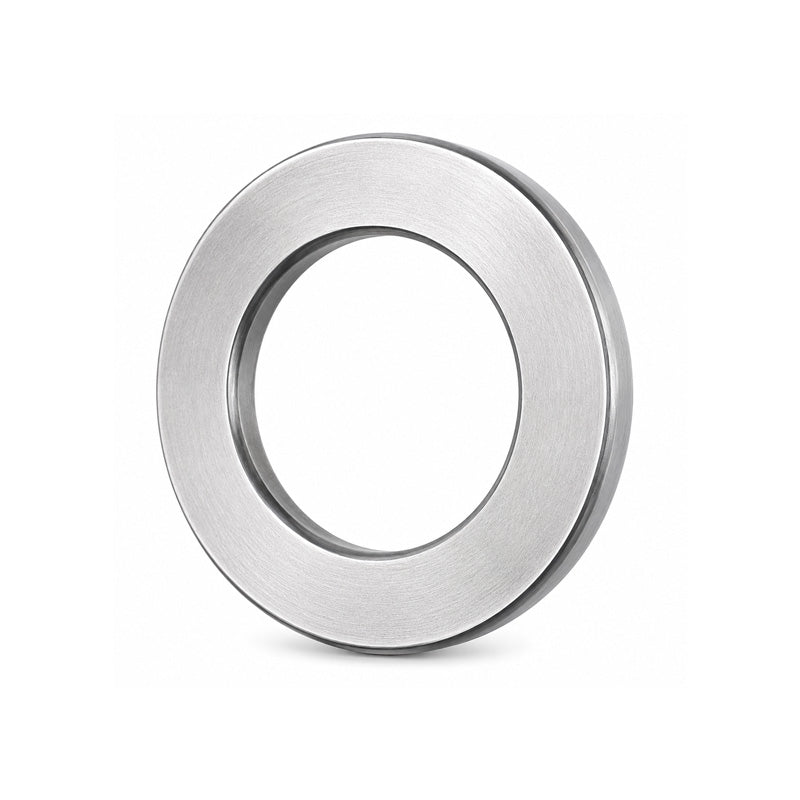

LS5070 Budget Raceway Washer Series LS 50x70x4mm
LS5070 Budget Raceway Washer Series LS 50x70x4mm
Regular price
$10.77
ex VAT
Regular price
Sale price
$10.77
ex VAT
In stock
Price Break
10+
$9.59
19+
$9.05
29+
$8.94
39+
$8.83
49+
$8.72
74+
$8.62
99+
$8.08
199+
$7.97
249+
$7.86
499+
$7.75
999+
$7.54
Couldn't load pickup availability
Description
Description
|
Budget LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 70mm
- Width:
- 4mm
Technical
Technical
| d | 50mm |
|---|---|
| d1 | 70mm |
| D | 70mm |
| D1 | 52mm |
| B | 4mm |
| r1r2 | 0.6mm |
| Weight | 55 g |
