SKU: LS6085-EU

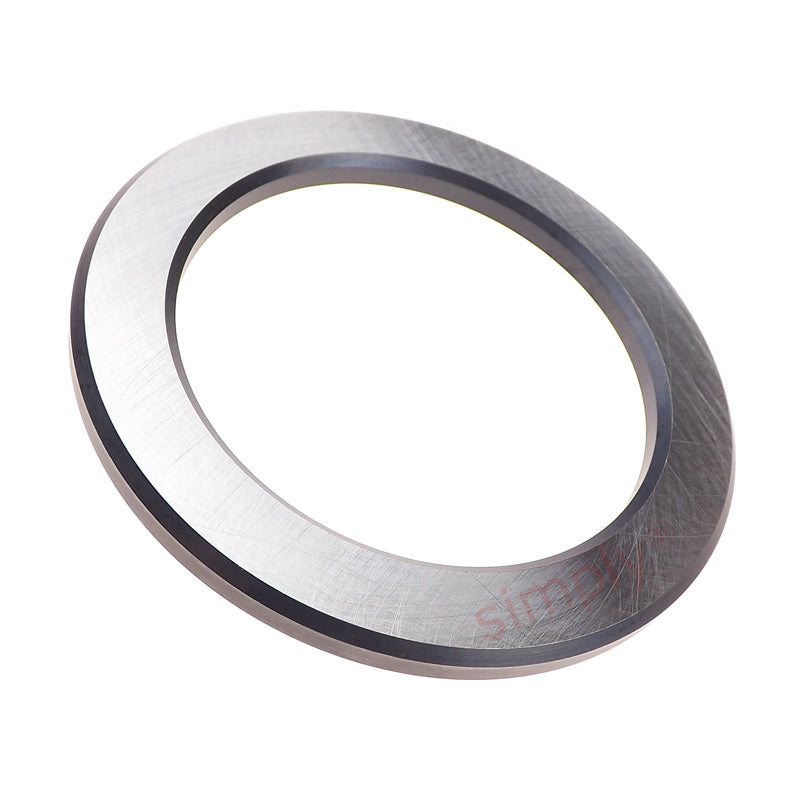

LS6085 Budget Raceway Washer Series LS 60x85x4.75mm
LS6085 Budget Raceway Washer Series LS 60x85x4.75mm
Regular price
$11.59
ex VAT
Regular price
Sale price
$11.59
ex VAT
In stock
Price Break
10+
$10.32
19+
$9.74
29+
$9.62
39+
$9.50
49+
$9.39
74+
$9.27
99+
$8.69
199+
$8.58
249+
$8.46
499+
$8.34
999+
$8.11
Couldn't load pickup availability
Description
Description
|
Budget LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 4.75mm
Technical
Technical
| d | 60mm |
|---|---|
| d1 | 85mm |
| D | 85mm |
| D1 | 62mm |
| B | 4.75mm |
| r1r2 | 1mm |
| Weight | 97 g |
