SKU: M-UCHB205D1-NTN

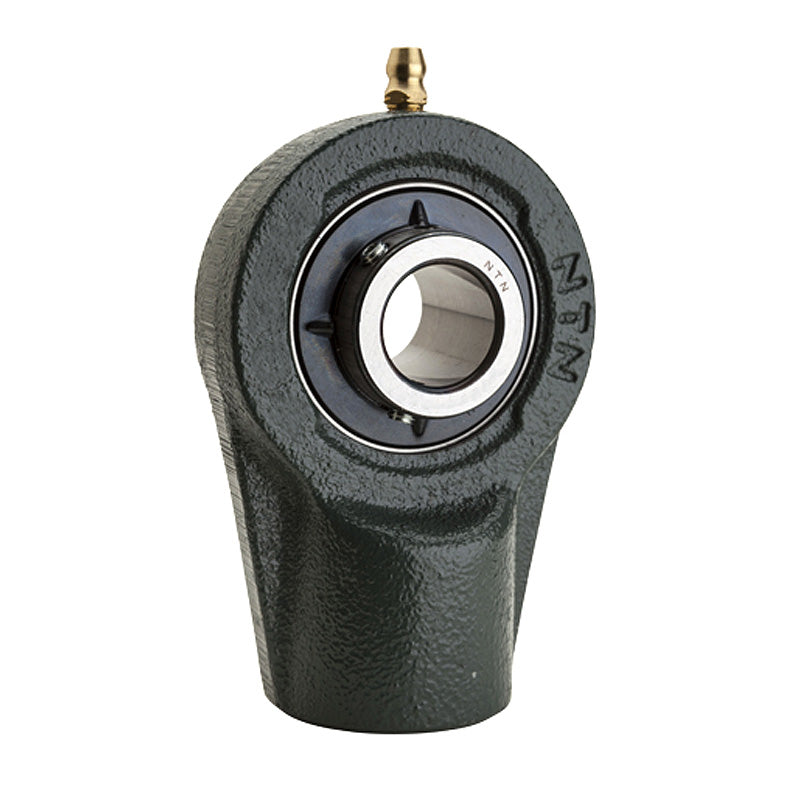

NTN M-UCHB205D1 Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert - Allow 2-3 Days
NTN M-UCHB205D1 Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert - Allow 2-3 Days
Regular price
$41.73
ex VAT
Regular price
Sale price
$41.73
ex VAT
In stock
Price Break
5+
$41.31
10+
$39.64
20+
$38.81
50+
$37.56
100+
$36.72
500+
$34.64
1000+
$29.21
Couldn't load pickup availability
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| L | 78mm |
| H<sub>1</sub> | 103mm |
| c | 0mm |
| A | 24mm |
| H | 64mm |
| N | RP3/4 |
| D | 40mm |
| j | 19mm |
| B | 34.1mm |
| S | 14.3mm |
| Mass | 0.9 kg |
