SKU: M-UCUP207D1-NTN

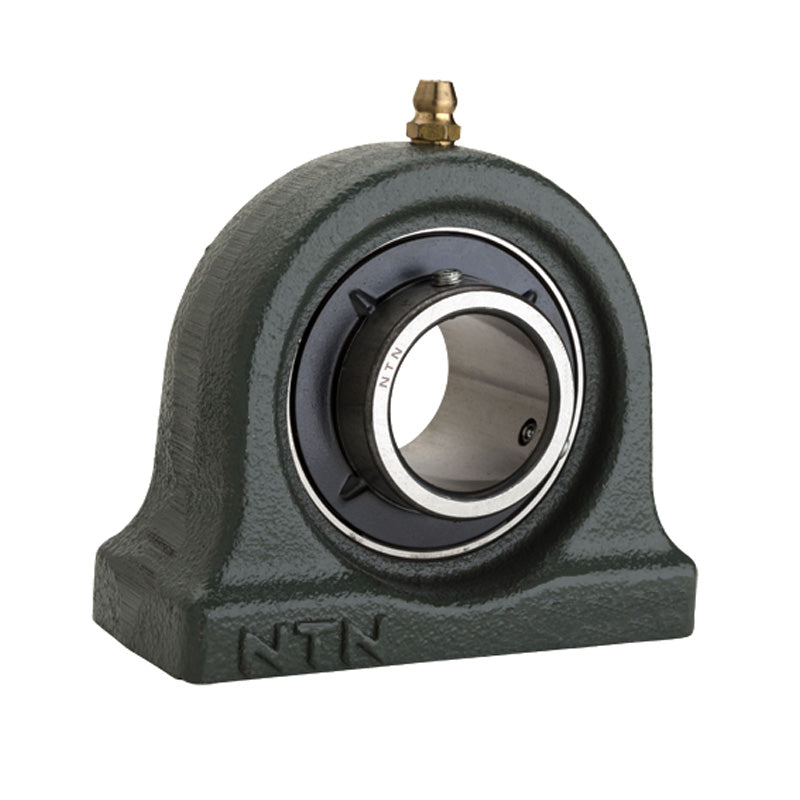

NTN M-UCUP207D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert - Allow 2-3 Days
NTN M-UCUP207D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert - Allow 2-3 Days
Regular price
$56.33
ex VAT
Regular price
Sale price
$56.33
ex VAT
In stock
Price Break
10+
$50.13
19+
$47.32
29+
$46.75
39+
$46.19
49+
$45.63
74+
$45.06
99+
$42.25
199+
$41.68
249+
$41.12
499+
$40.56
999+
$39.43
Couldn't load pickup availability
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCUP
- Bolt Hole Centres:
- 80mm
Technical
Technical

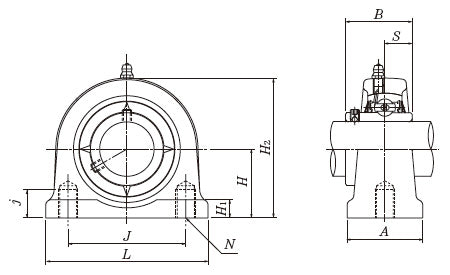

| Shaft diameter | 35mm |
|---|---|
| H | 47.6mm |
| L | 110mm |
| J | 80mm |
| A | 48mm |
| j | 20mm |
| H<sub>1</sub> | 13mm |
| H<sub>2</sub> | 95mm |
| B | 42.9mm |
| S | 17.5mm |
| N | M14X2 |
| Mass | 1.6 kg |
