SKU: MFC1.3/16-RHP

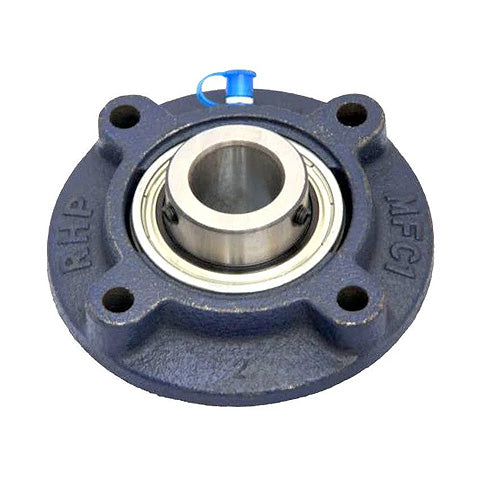

RHP MFC1-3/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/16 inch Insert
RHP MFC1-3/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/16 inch Insert
Regular price
$116.32
ex VAT
Regular price
Sale price
$116.32
ex VAT
In stock
Price Break
10+
$103.52
19+
$97.71
29+
$96.55
39+
$95.38
49+
$94.22
74+
$93.06
99+
$87.24
199+
$86.08
249+
$84.91
499+
$83.75
999+
$81.42
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 104.78mm = 4.125 (4-1/8) inch
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| L | 5 inch |
| H | 3.375 inch |
| J | 4.125 inch |
| G | 0.375 inch |
| A1 | 1.312 inch |
| A4 | 0.748 inch |
| A5 | 0.252 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/16G+insonly">1035-1-3/16G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
