SKU: MFC55-RHP

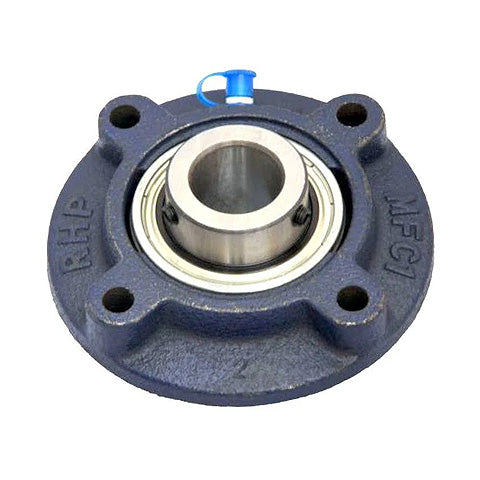

RHP MFC55 Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP MFC55 Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
Regular price
$206.34
ex VAT
Regular price
Sale price
$206.34
ex VAT
In stock
Price Break
10+
$183.64
19+
$173.33
29+
$171.26
39+
$169.20
49+
$167.14
74+
$165.07
99+
$154.76
199+
$152.69
249+
$150.63
499+
$148.56
999+
$144.44
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- MFC
- Pitch Circle Diameter:
- 152.4mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 181mm |
| H | 127mm |
| J | 152.4mm |
| G | 12mm |
| A1 | 42.85mm |
| A4 | 15.9mm |
| A5 | 9.5mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 3.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-55G+insonly">1060-55G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
