SKU: MSC100-RHP

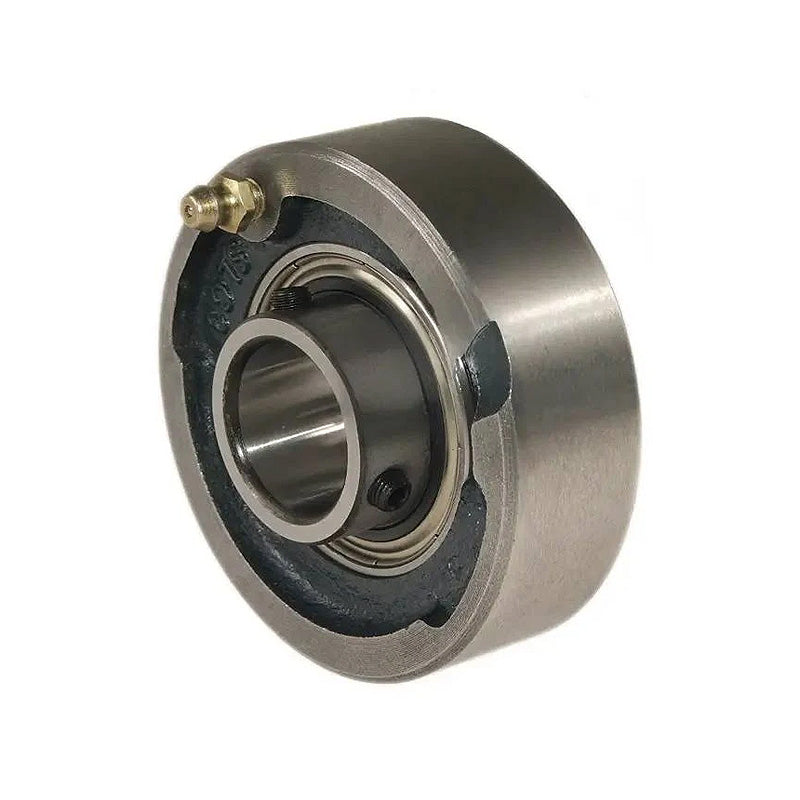

RHP MSC100 Cast Iron Cartridge Unit with 100mm Bore Insert 241.33mm Outside Diameter
RHP MSC100 Cast Iron Cartridge Unit with 100mm Bore Insert 241.33mm Outside Diameter
Regular price
$1,167.82
ex VAT
Regular price
Sale price
$1,167.82
ex VAT
In stock
Price Break
10+
$1,039.36
19+
$980.97
29+
$969.29
39+
$957.61
49+
$945.93
74+
$934.26
99+
$875.87
199+
$864.19
249+
$852.51
499+
$840.83
999+
$817.47
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 241.33mm
- Style:
- MSC
Technical
Technical
| Bore | 100mm |
|---|---|
| L | 241.325mm |
| A | 76.2mm |
| A1 | 106.38mm |
| B | 117.48mm |
| s | 49.27mm |
| d1 | 130.43 |
| Dynamic load Cr | 157000 N |
| Static load Cor | 122000 N |
| Rex max speed | 1600 rpm |
| Weight | 20.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-100G+insonly">3095-100G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
