SKU: MSC2.3/4-RHP

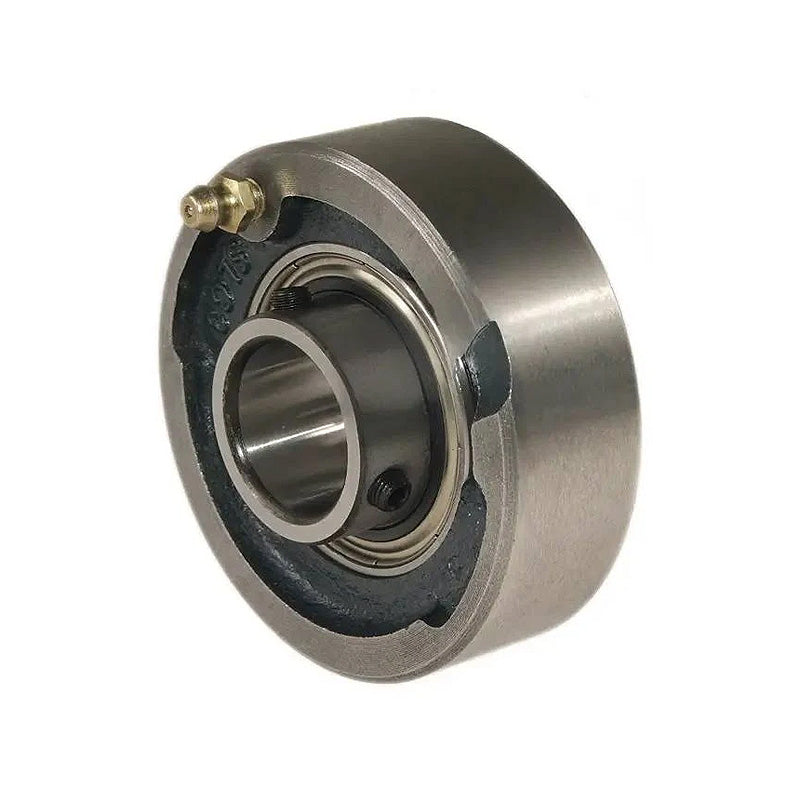

RHP MSC2-3/4 Cast Iron Cartridge Unit with 2-3/4 inch Bore Insert 158.78mm Outside Diameter
RHP MSC2-3/4 Cast Iron Cartridge Unit with 2-3/4 inch Bore Insert 158.78mm Outside Diameter
Regular price
$336.78
ex VAT
Regular price
Sale price
$336.78
ex VAT
In stock
Price Break
10+
$299.73
19+
$282.90
29+
$279.53
39+
$276.16
49+
$272.79
74+
$269.42
99+
$252.59
199+
$249.22
249+
$245.85
499+
$242.48
999+
$235.75
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Outside Diameter:
- 158.78mm
- Style:
- MSC
Technical
Technical
| Bore | 2-3/4 inch |
|---|---|
| L | 6.251 inch |
| A | 2 inch |
| A1 | 2.748 inch |
| B | 2.938 inch |
| s | 1.19 inch |
| d1 | 3.425 |
| Dynamic load Cr | 61000 N |
| Static load Cor | 45000 N |
| Rex max speed | 2450 rpm |
| Weight | 5.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-2-3/4G+insonly">1070-2-3/4G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
