SKU: MSFT1.3/4-RHP

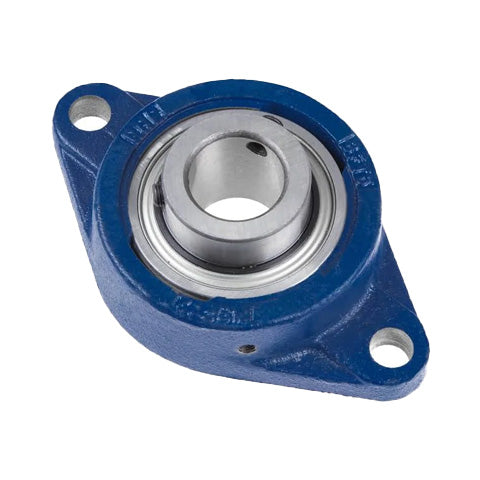

RHP MSFT1-3/4 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-3/4 inch Bore Insert
RHP MSFT1-3/4 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-3/4 inch Bore Insert
Regular price
$161.17
ex VAT
Regular price
Sale price
$161.17
ex VAT
In stock
Price Break
10+
$143.44
19+
$135.38
29+
$133.77
39+
$132.16
49+
$130.55
74+
$128.94
99+
$120.88
199+
$119.27
249+
$117.65
499+
$116.04
999+
$112.82
Couldn't load pickup availability
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- MSFT
- Bolt Hole Centres:
- 156.997mm = 6.181 inch
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 4.563 inch |
| H | 7.437 inch |
| J | 6.181 inch |
| G | 0.625 inch |
| A | 1.563 inch |
| A1 | 2.383 inch |
| A4 | 0.563 inch |
| B | 2.031 inch |
| s | 0.752 |
| d1 | 2.449 inch |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-3/4G+insonly">1050-1-3/4G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
