SKU: NK8/12TN-MB

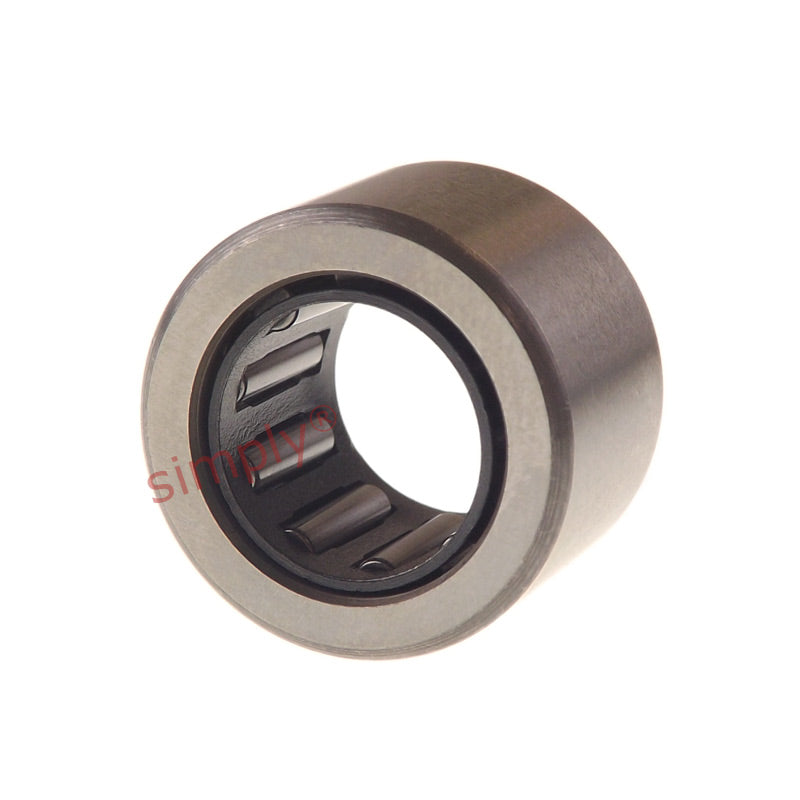

Major Brand NK8/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x12mm
Major Brand NK8/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x12mm
Regular price
$10.43
ex VAT
Regular price
Sale price
$10.43
ex VAT
In stock
Price Break
10+
$9.28
19+
$8.76
29+
$8.66
39+
$8.55
49+
$8.45
74+
$8.34
99+
$7.82
199+
$7.72
249+
$7.61
499+
$7.51
999+
$7.30
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 15mm
- Width:
- 12mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 15mm |
| C | 12mm |
| Dynamic load | 3800 N |
| Static load | 4250 N |
| Fatigue load limit Pu | 465 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| r1r2 | 0.3mm |
| Da max | 13mm |
| ra max | 0.3mm |
| Seal | G/SD8x15x3 |
| Weight | 8.7 g |
