SKU: NKIA5912-EU

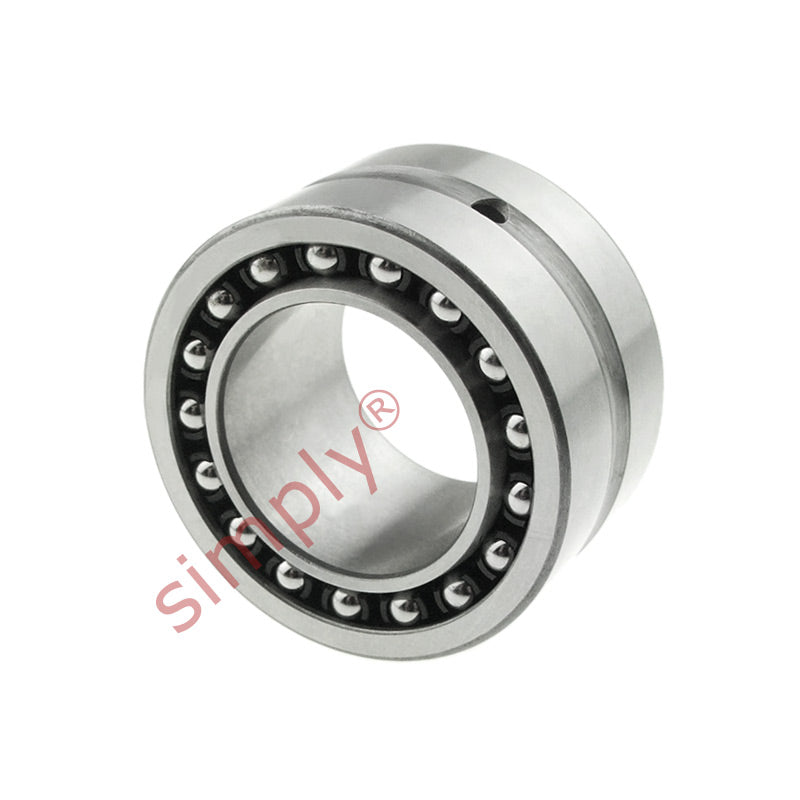

NKIA5912 Budget Needle Roller / Angular Contact Ball Bearing 60x85x34mm
NKIA5912 Budget Needle Roller / Angular Contact Ball Bearing 60x85x34mm
Regular price
$143.60
ex VAT
Regular price
Sale price
$143.60
ex VAT
In stock
Price Break
10+
$127.80
19+
$120.62
29+
$119.19
39+
$117.75
49+
$116.32
74+
$114.88
99+
$107.70
199+
$106.26
249+
$104.83
499+
$103.39
999+
$100.52
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 34mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| B | 34mm |
| Radial dynamic load | 59400 N |
| Radial static load | 114000 N |
| Axial dynamic load | 9580 N |
| Axial static load | 18000 N |
| Fatigue load limit radial Pu | 14300 N |
| Fatigue load limit axial Pu | 770 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 68mm |
| r1r2 | 1mm |
| da min | 65mm |
| Da max | 80mm |
| ra max | 1mm |
| Weight | 590 g |
