SKU: PNA12/28-EU

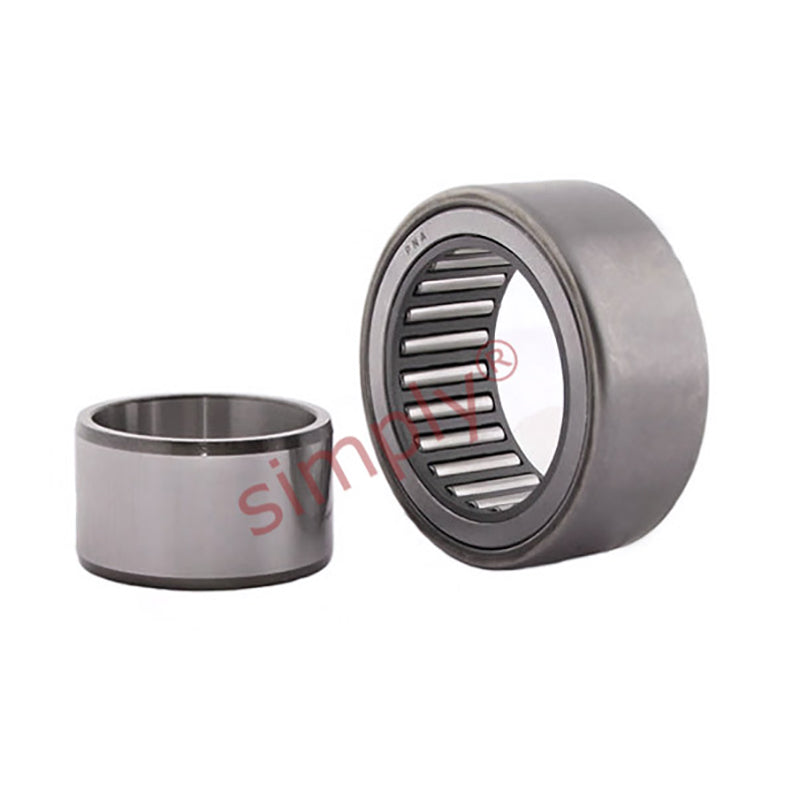

PNA12/28 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
PNA12/28 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
Regular price
$24.63
ex VAT
Regular price
Sale price
$24.63
ex VAT
In stock
Price Break
10+
$21.92
19+
$20.69
29+
$20.44
39+
$20.20
49+
$19.95
74+
$19.70
99+
$18.47
199+
$18.23
249+
$17.98
499+
$17.73
999+
$17.24
Couldn't load pickup availability
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 12mm |
| Dynamic load C | 7370 N |
| Static load Co | 9150 N |
| Fatigue load limit Pu | 1080 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| F | 15mm |
| D1 | 24.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 14mm |
| Da min | 23.5mm |
| Da max | 24.5mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 37 g |
