SKU: QRMF-06-HQ10-MB

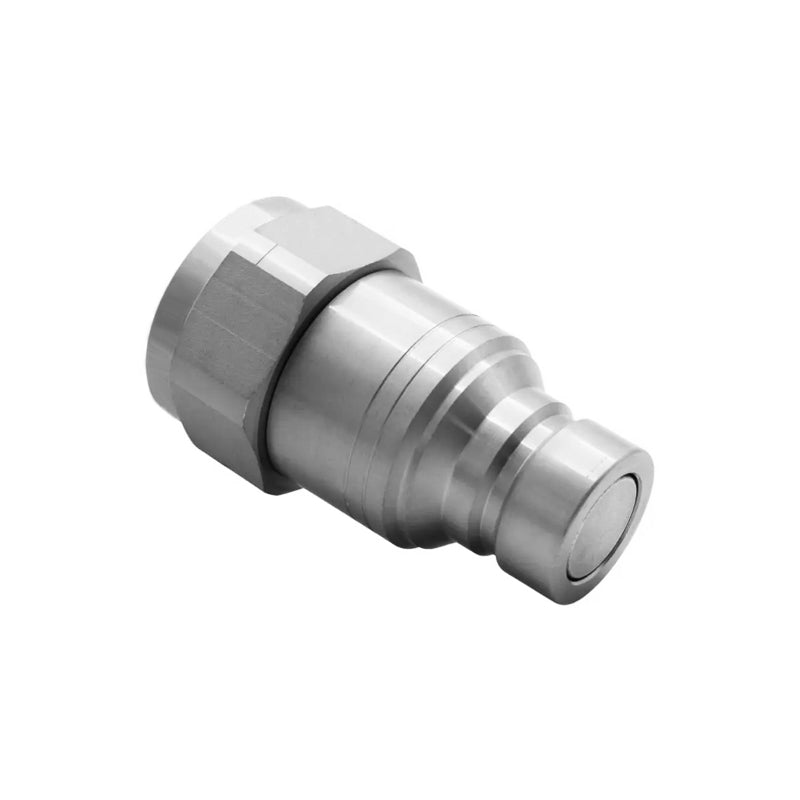

3/8 inch BSP Male Flat Face Quick Release Coupling - Allow 2-3 Days
3/8 inch BSP Male Flat Face Quick Release Coupling - Allow 2-3 Days
Regular price
$20.91
ex VAT
Regular price
Sale price
$20.91
ex VAT
In stock
Price Break
10+
$18.61
19+
$17.56
29+
$17.36
39+
$17.15
49+
$16.94
74+
$16.73
99+
$15.68
199+
$15.47
249+
$15.26
499+
$15.06
999+
$14.64
Couldn't load pickup availability
Description
Description
BSP Male Flat Face Quick Release Coupling: These couplings offer leak-free performance in high-pressure and hammer circuit applications. Made from durable carbon steel with zinc-nickel plating, these couplings resist corrosion and ensure longevity. Their flat-face design minimises air and contaminant inclusion while preventing fluid loss during disconnection. A safety locking sleeve prevents accidental disconnection and they also allow bidirectional flow, making them ideal for industrial, construction, and agricultural uses.
Benefits: Durable, safe and convenient, leak-free performance.
- Brand / Quality:
- Simply Quick Release Couplings - High Quality
- Thread Size:
- 3/8 inch BSP
- Length:
- 60mm
- Max Working Pressure:
- 350 bar
Technical
Technical
| Thread Size | 3/8 inch |
|---|---|
| Total Length (D) | 60mm |
| Nut Size (H) | 27mm |
| Body Size (J) | 19.7mm |
| Maximum Working Pressure | 350 bar |
| Coupled Burst Pressure | 1500 bar |
| Male Burst Pressure | 1050 bar |
| Rated Flow | 23 lpm |
| Material | Zinc-Nickel Coated Steel |
| Weight | 0.154 kg |
