SKU: RAE25-NPP-B-INA

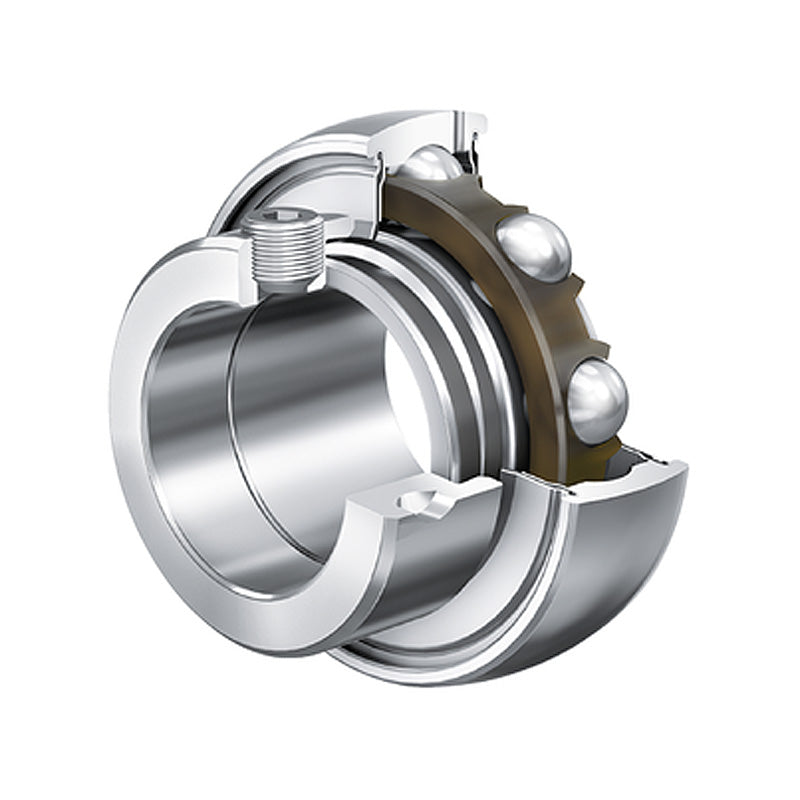

INA RAE25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25x52x31mm
INA RAE25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25x52x31mm
Regular price
$29.74
ex VAT
Regular price
Sale price
$29.74
ex VAT
In stock
Price Break
10+
$26.47
19+
$24.98
29+
$24.68
39+
$24.39
49+
$24.09
74+
$23.79
99+
$22.31
199+
$22.01
249+
$21.71
499+
$21.41
999+
$20.82
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 31mm
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 15mm |
| d2 | 30.5mm |
| d3 max | 37.5mm |
| S | 7.5mm |
| W | 3mm |
| Dynamic load Cr | 14900 N |
| Static load C0r | 7800 N |
| Weight | 0.19 kg |
