SKU: RAE45-NPP-FA106-INA

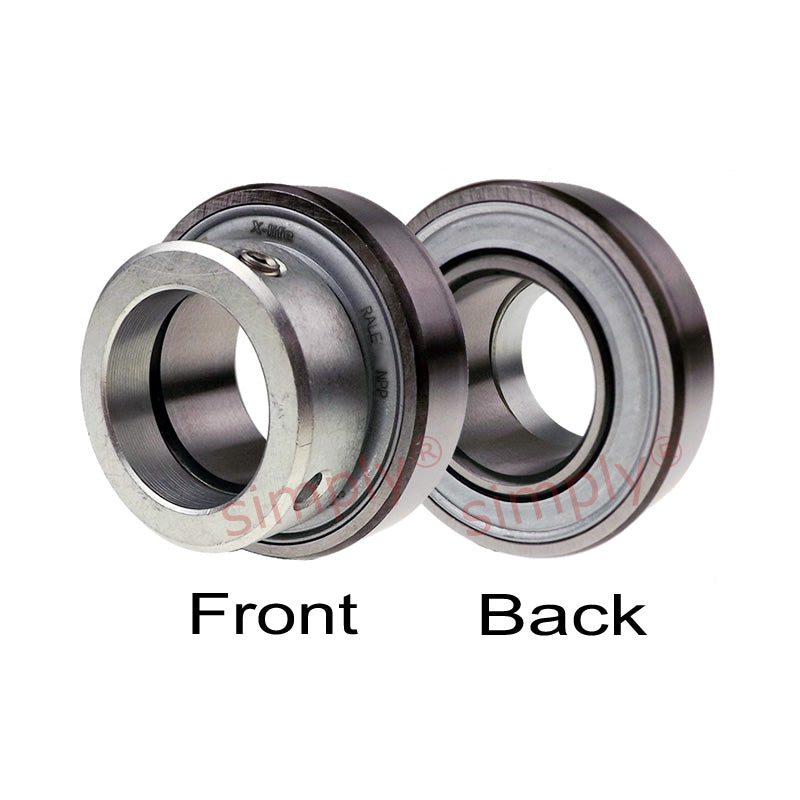

INA RAE45XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 45x85x43.8mm
INA RAE45XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 45x85x43.8mm
Regular price
$65.31
ex VAT
Regular price
Sale price
$65.31
ex VAT
In stock
Price Break
10+
$58.13
19+
$54.86
29+
$54.21
39+
$53.55
49+
$52.90
74+
$52.25
99+
$48.98
199+
$48.33
249+
$47.68
499+
$47.02
999+
$45.72
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 43.8mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 22mm |
| d2 | 54.5mm |
| d3 max | 63mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.72 kg |
