SKU: RAE50-NPP-B-INA

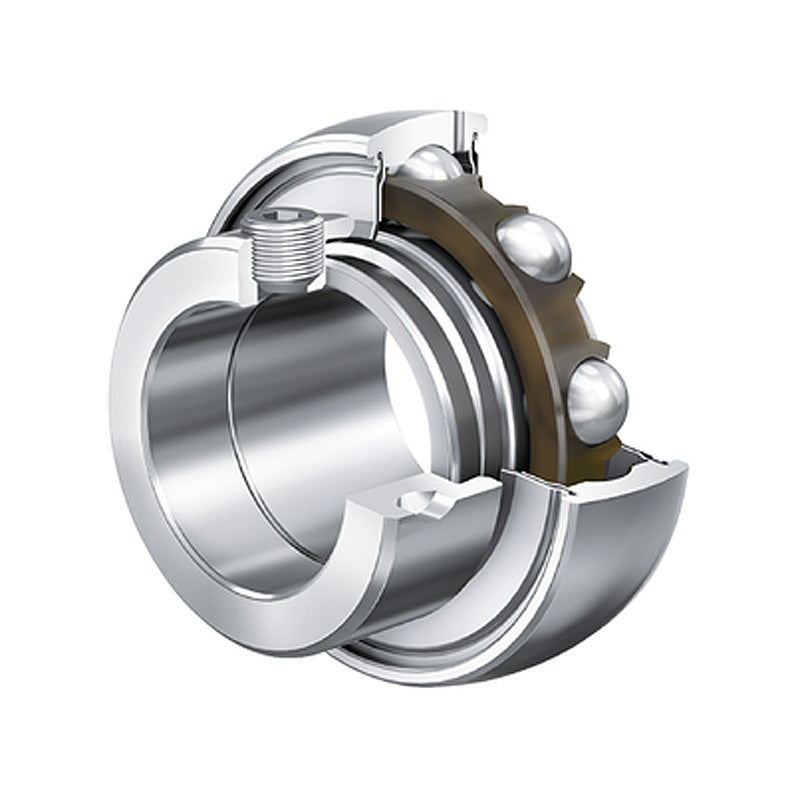

INA RAE50XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 50x90x43.8mm
INA RAE50XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 50x90x43.8mm
Regular price
$67.24
ex VAT
Regular price
Sale price
$67.24
ex VAT
In stock
Price Break
10+
$59.84
19+
$56.48
29+
$55.81
39+
$55.14
49+
$54.46
74+
$53.79
99+
$50.43
199+
$49.76
249+
$49.09
499+
$48.41
999+
$47.07
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 43.8mm
Technical
Technical
| d | 50mm |
|---|---|
| Dsp | 90mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 22mm |
| d2 | 59.4mm |
| d3 max | 69mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 0.77 kg |
