SKU: RM40FF-DUN

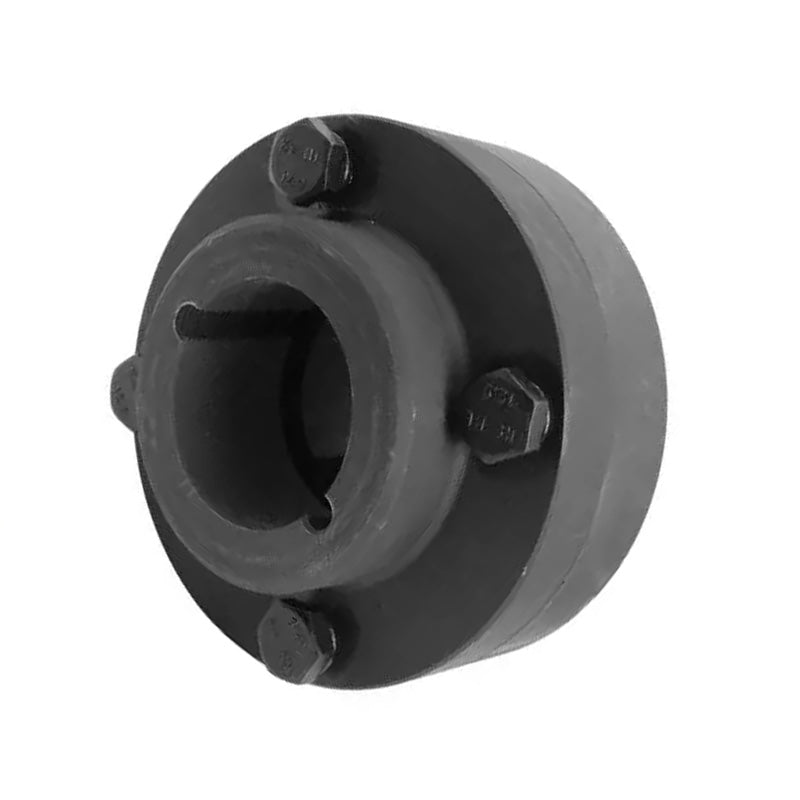

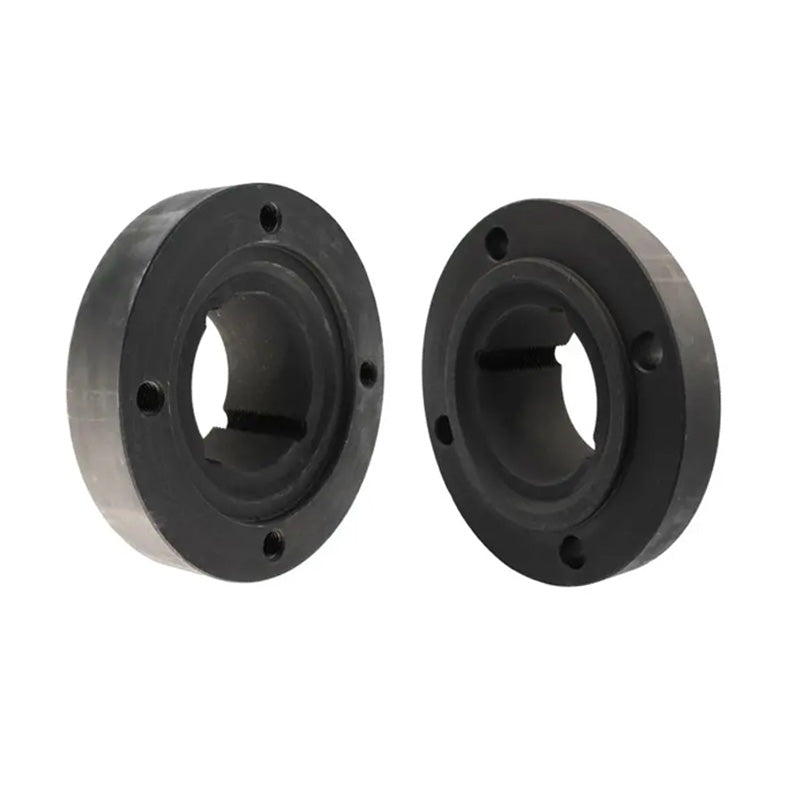

Dunlop RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch
Dunlop RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch
Regular price
$525.11
ex VAT
Regular price
Sale price
$525.11
ex VAT
In stock
Price Break
10+
$467.35
19+
$441.09
29+
$435.84
39+
$430.59
49+
$425.34
74+
$420.09
99+
$393.83
199+
$388.58
249+
$383.33
499+
$378.08
999+
$367.58
Couldn't load pickup availability
Description
Description
Major Branded Rigid Shaft Coupling with Inner Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (FF).
- Brand / Quality:
- Dunlop - Good Quality
- Max Bore:
- 110mm or 4-1/2 inch
Technical
Technical
| Bush | 4030<a href="advanced_search_result.php?keywords=taper+lock+bush+4030"> [Click Here]</a> |
|---|---|
| Max Bore Size | 110mm |
| Inch | 4-1/2 inch |
| A | 298mm |
| C | 76mm |
| D | 210mm |
| E | 76mm |
| F Nominal | 216mm |
| G Nominal | 257mm |
| H ♣ | 7mm |
| J ♠ | 79mm |
| L | 159mm |
| Mass ♥ | 59kg |
