SKU: RPNA40/55-EU

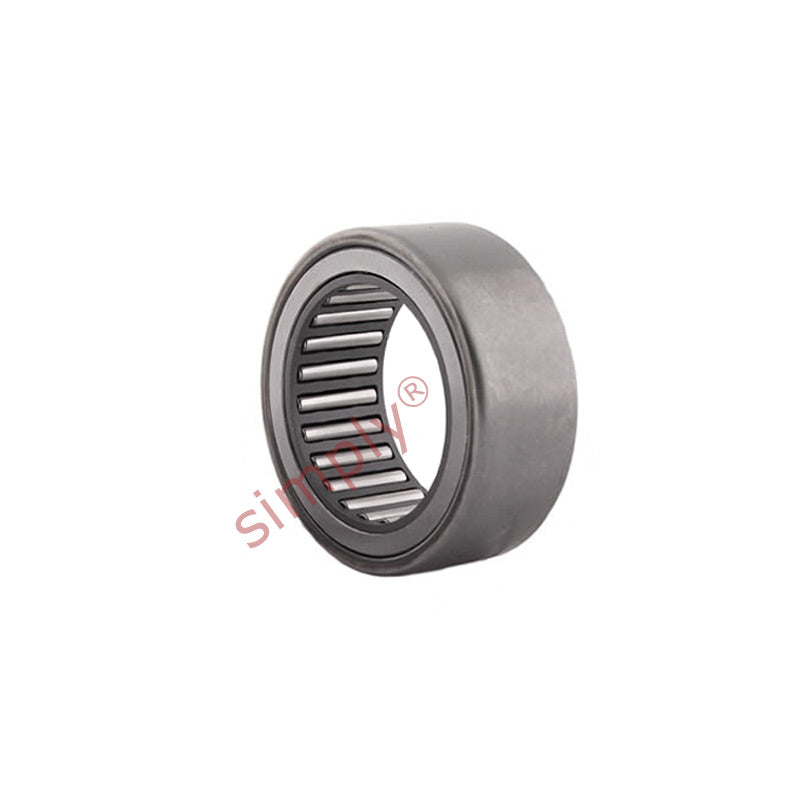

RPNA40/55 Budget Needle Roller Bearing Alignment Type no Inner Race 40x55x20
RPNA40/55 Budget Needle Roller Bearing Alignment Type no Inner Race 40x55x20
Regular price
$63.46
ex VAT
Regular price
Sale price
$63.46
ex VAT
In stock
Price Break
10+
$56.48
19+
$53.31
29+
$52.67
39+
$52.04
49+
$51.40
74+
$50.77
99+
$47.60
199+
$46.96
249+
$46.33
499+
$45.69
999+
$44.42
Couldn't load pickup availability
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 55mm
- Width:
- 20mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 55mm |
| B | 20mm |
| Dynamic load C | 26400 N |
| Static load Co | 51000 N |
| Fatigue load limit Pu | 6300 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| D1 | 50.5mm |
| r min | 1mm |
| Da min | 49.5mm |
| Da max | 50.5mm |
| ra max | 1mm |
| Weight | 140 g |
