SKU: SIL35TXE-2LS-SKF

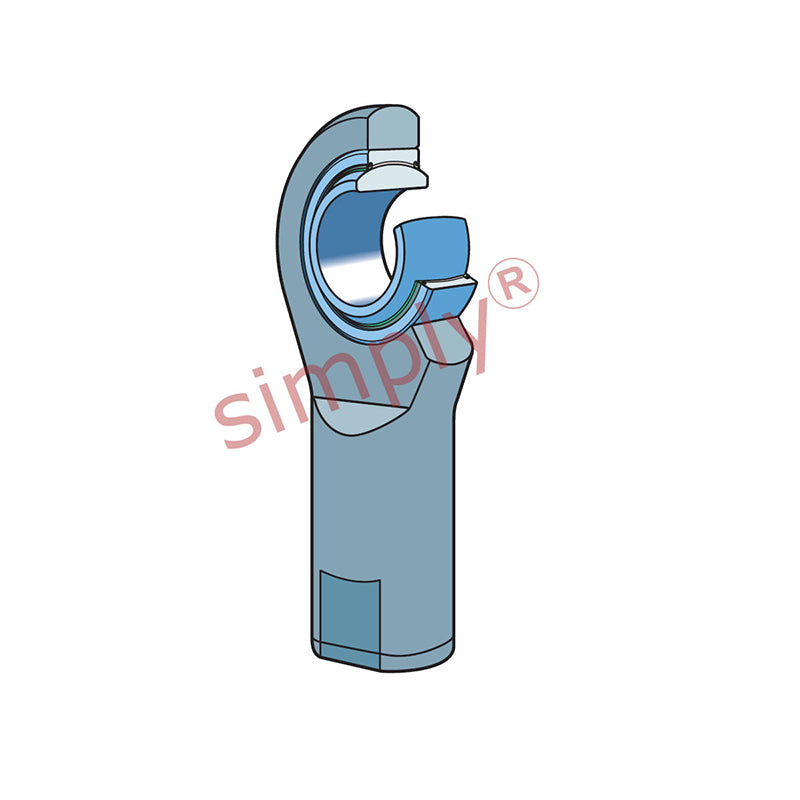

SKF SIL35TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M36x3 Thread
SKF SIL35TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M36x3 Thread
Regular price
$270.93
ex VAT
Regular price
Sale price
$270.93
ex VAT
In stock
Price Break
10+
$241.13
19+
$227.58
29+
$224.87
39+
$222.16
49+
$219.45
74+
$216.74
99+
$203.20
199+
$200.49
249+
$197.78
499+
$195.07
999+
$189.65
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M36x3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 35mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 35mm |
|---|---|
| d2 max | 84mm |
| G 6H | M36x3 |
| B | 25mm |
| C1 max | 22mm |
| h1 | 130mm |
| a | 6deg |
| Dynamic load C | 224 kN |
| Static load Co | 134 kN |
| Weight | 1.4 kg |
| dk | 47mm |
| d4 | 49mm |
| l3 min | 60mm |
| l4 max | 174mm |
| l5 | 25mm |
| l7 min | 40mm |
| r1 min | 0.6mm |
| w h14 | 41mm |
