SKU: SL2DEC-RHP

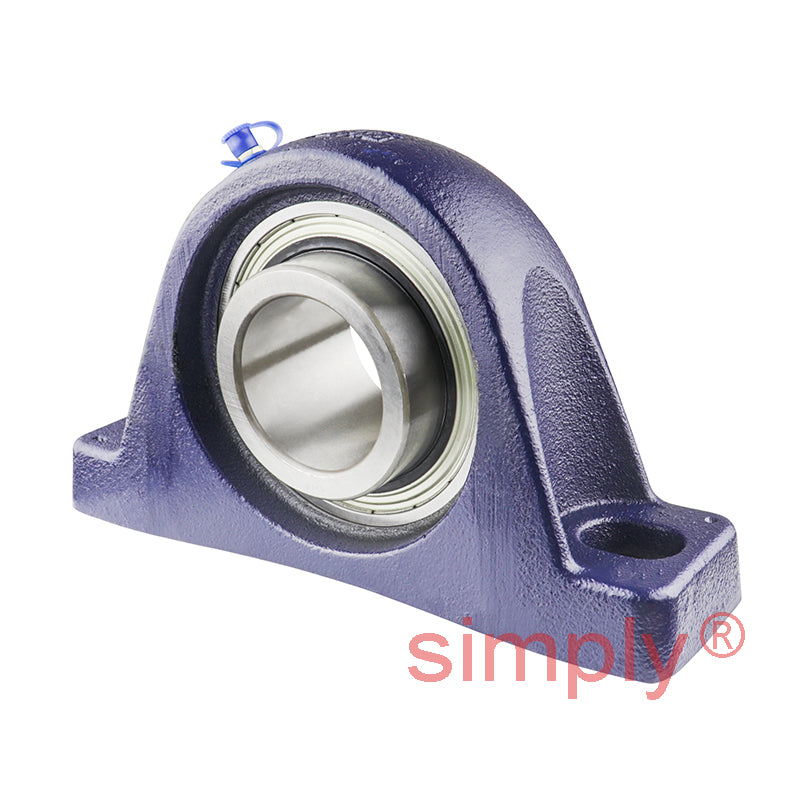

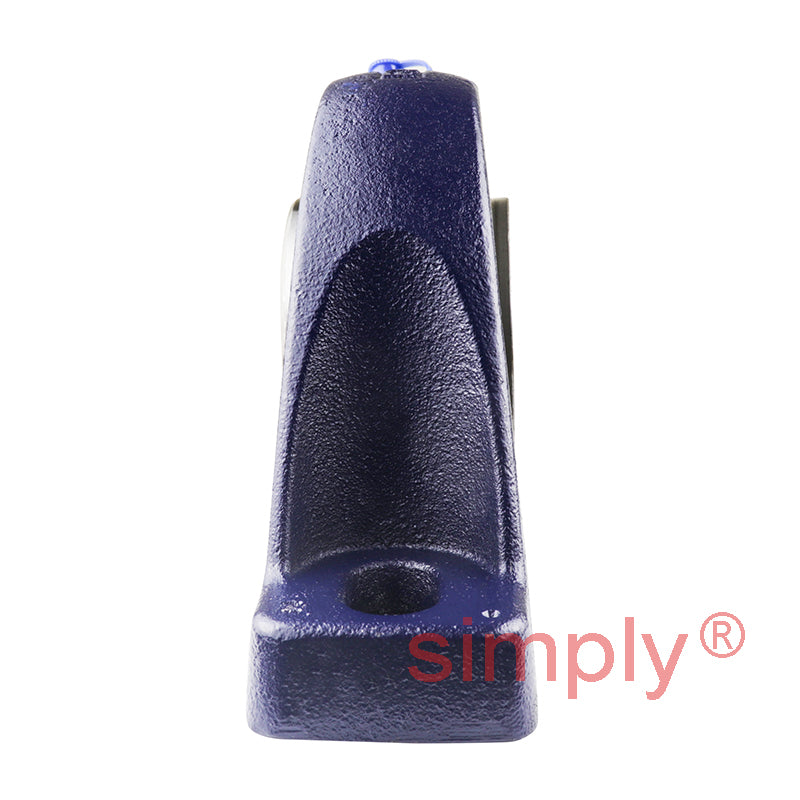

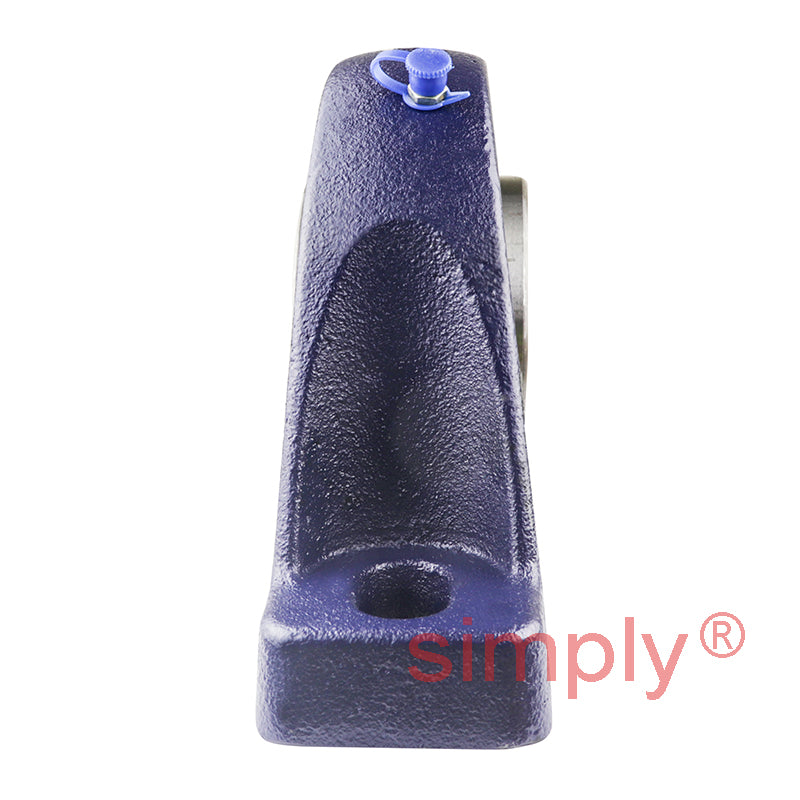

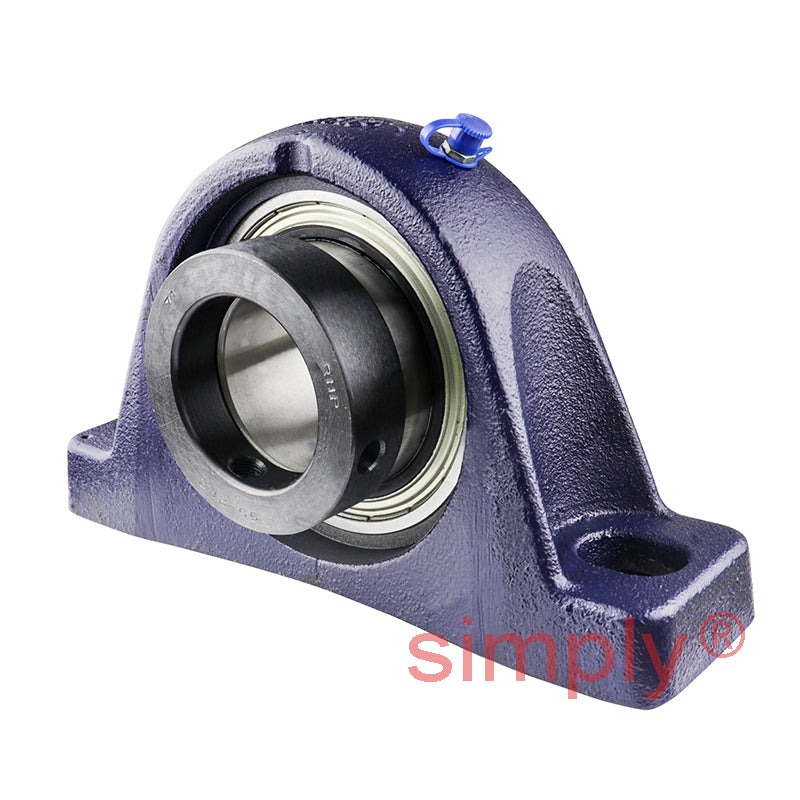

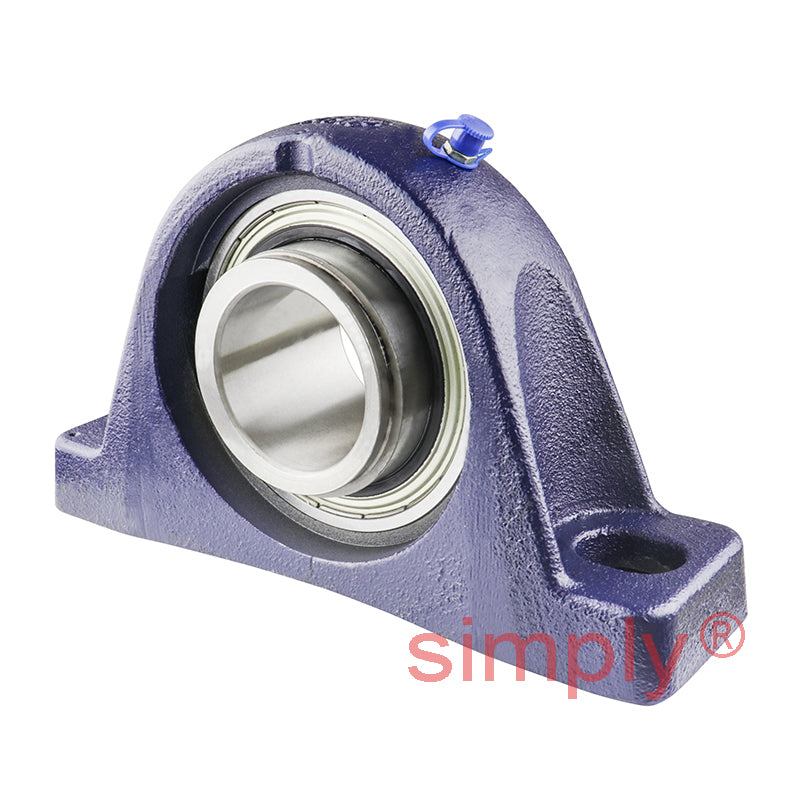

RHP SL2DEC Two Bolt Cast Iron Pillow Block and 2 Bore Eccentric Collar Full Width Insert
RHP SL2DEC Two Bolt Cast Iron Pillow Block and 2 Bore Eccentric Collar Full Width Insert
Regular price
$181.68
ex VAT
Regular price
Sale price
$181.68
ex VAT
In stock
Price Break
10+
$161.70
19+
$152.61
29+
$150.79
39+
$148.98
49+
$147.16
74+
$145.34
99+
$136.26
199+
$134.44
249+
$132.63
499+
$130.81
999+
$127.18
Couldn't load pickup availability
Description
Description
|

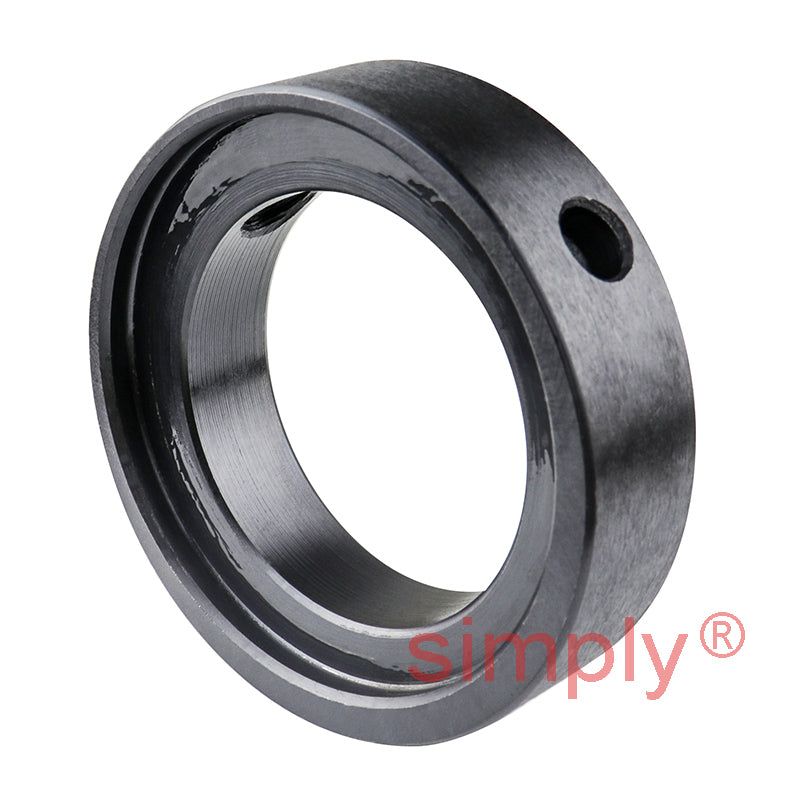

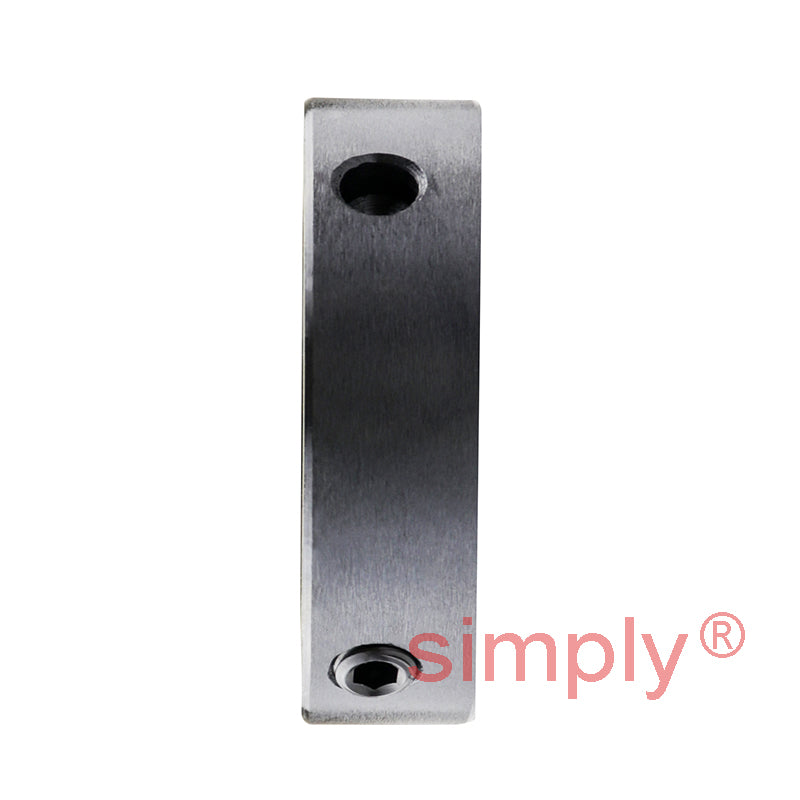

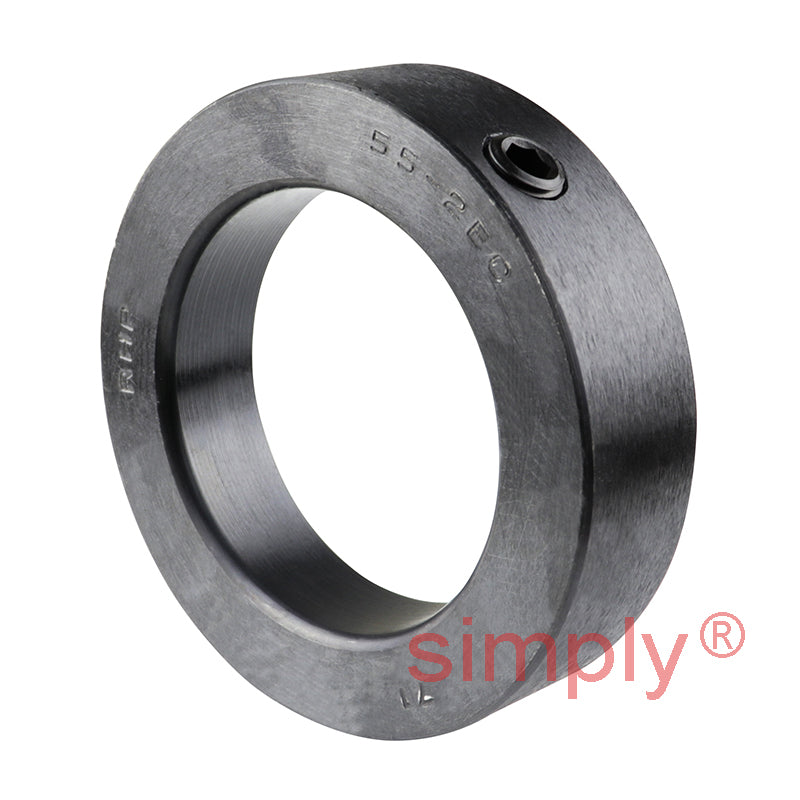

RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SL
- Bolt Hole Centres:
- 6.398-7.028 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 8.641 inch |
| H | 2.437 inch |
| H1 | 0.913 inch |
| H2 | 5.039 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B3 | 2.813 inch |
| s2 | 1.095 inch |
| d2 | 3 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
