SKU: SL2R-RHP

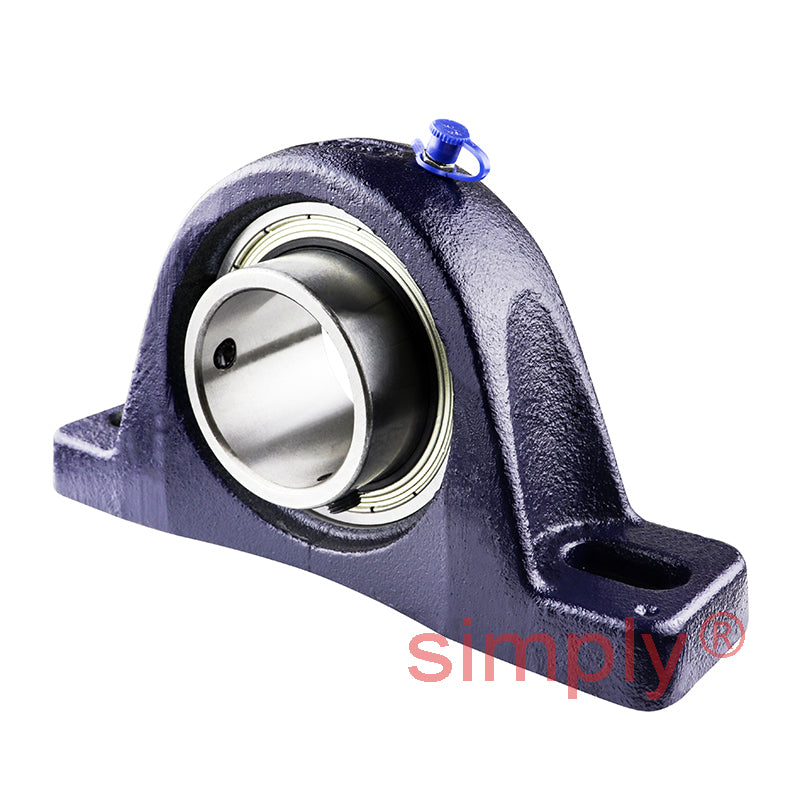

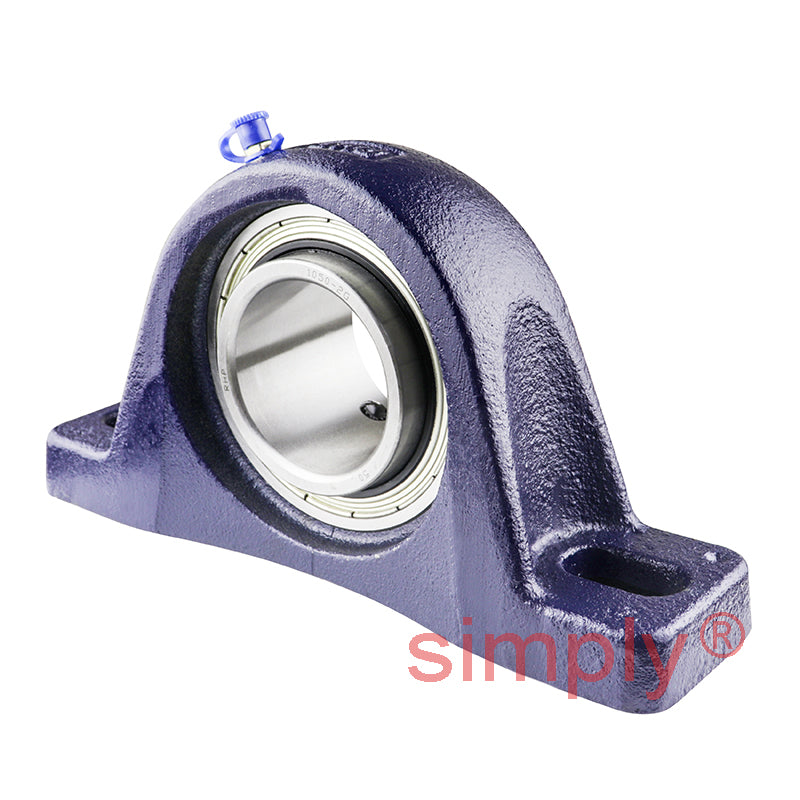

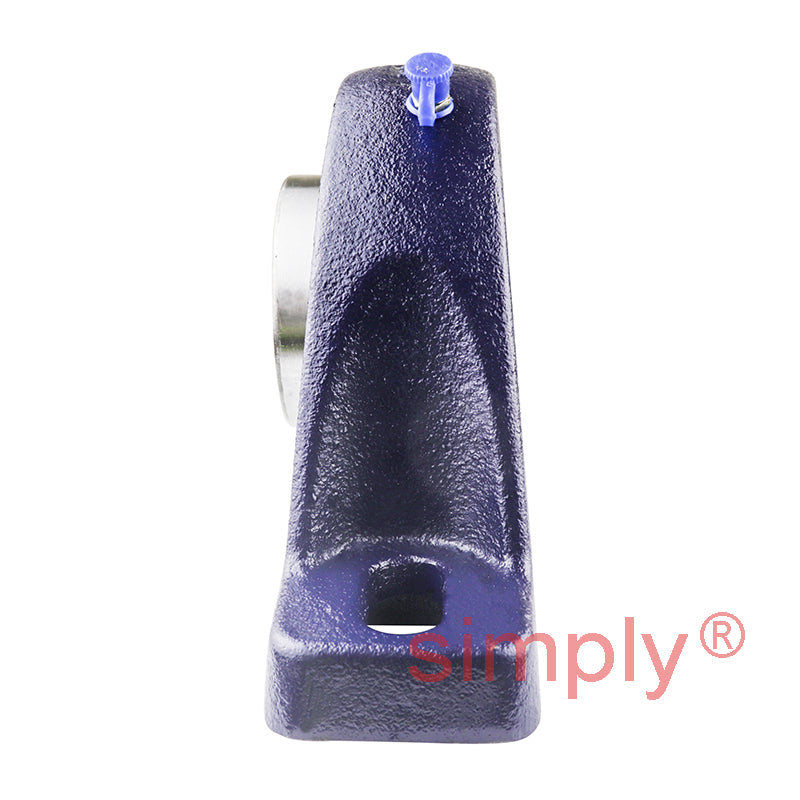

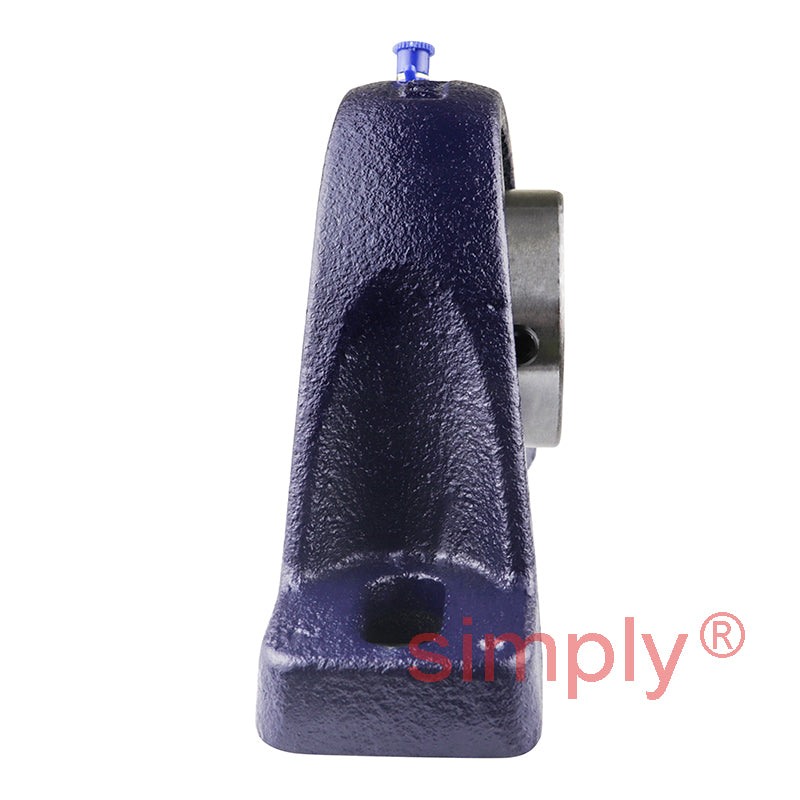

RHP SL2R Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
RHP SL2R Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
Regular price
$113.32
ex VAT
Regular price
Sale price
$113.32
ex VAT
In stock
Price Break
10+
$100.85
19+
$95.19
29+
$94.06
39+
$92.92
49+
$91.79
74+
$90.66
99+
$84.99
199+
$83.86
249+
$82.72
499+
$81.59
999+
$79.32
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SL
- Bolt Hole Centres:
- 5.945-6.969 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 8.425 inch |
| H | 2.187 inch |
| H1 | 0.76 inch |
| H2 | 4.488 inch |
| J max | 6.969 inch |
| J min | 5.945 inch |
| G | 0.5 inch |
| A | 2.165 inch |
| A1 | 1.417 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| s1 | 0.435 inch |
| d1 | 2.449 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
