SKU: SNP2.7/16-RHP

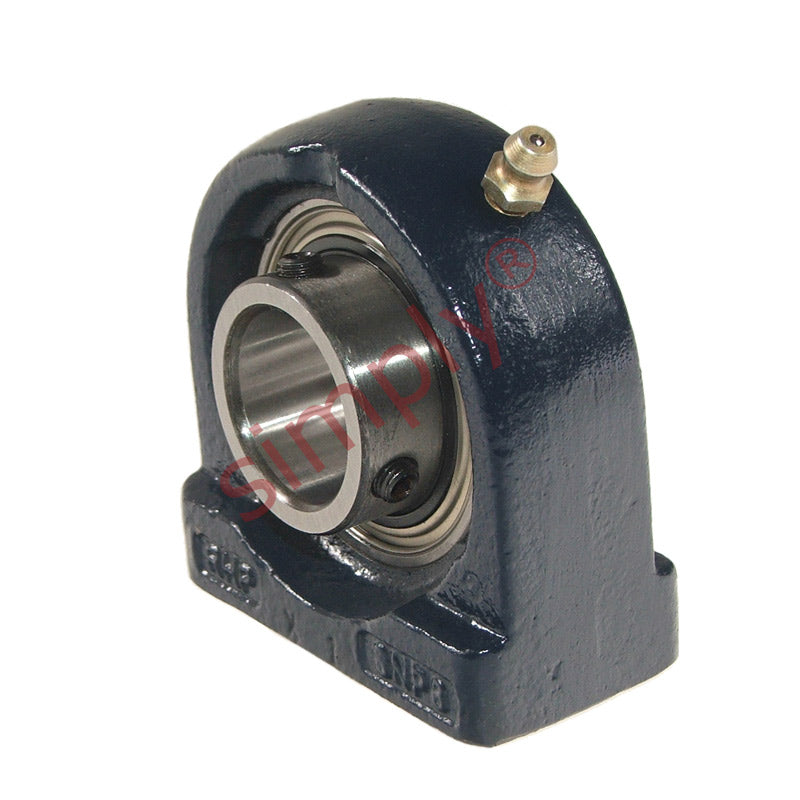

RHP SNP2-7/16 Threaded Base Small Footprint Pillow / Plummer Block and 2-7/16 inch Bore Grub Screw Full Width Insert
RHP SNP2-7/16 Threaded Base Small Footprint Pillow / Plummer Block and 2-7/16 inch Bore Grub Screw Full Width Insert
Regular price
$216.98
ex VAT
Regular price
Sale price
$216.98
ex VAT
In stock
Price Break
10+
$193.11
19+
$182.26
29+
$180.09
39+
$177.92
49+
$175.75
74+
$173.58
99+
$162.74
199+
$160.57
249+
$158.40
499+
$156.23
999+
$151.89
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- SNP
- Bolt Hole Centres:
- 118.01mm = 4.646 inch
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 6.063 inch |
| H | 2.752 inch |
| H1 | 1.043 inch |
| H2 | 5.571 inch |
| J | 4.646 inch |
| Threads | 5/8-11 UNC |
| A | 2.362 inch |
| A1 | 1.639 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-7/16G+insonly">1060-2-7/16G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
