SKU: SNP25A-RHP

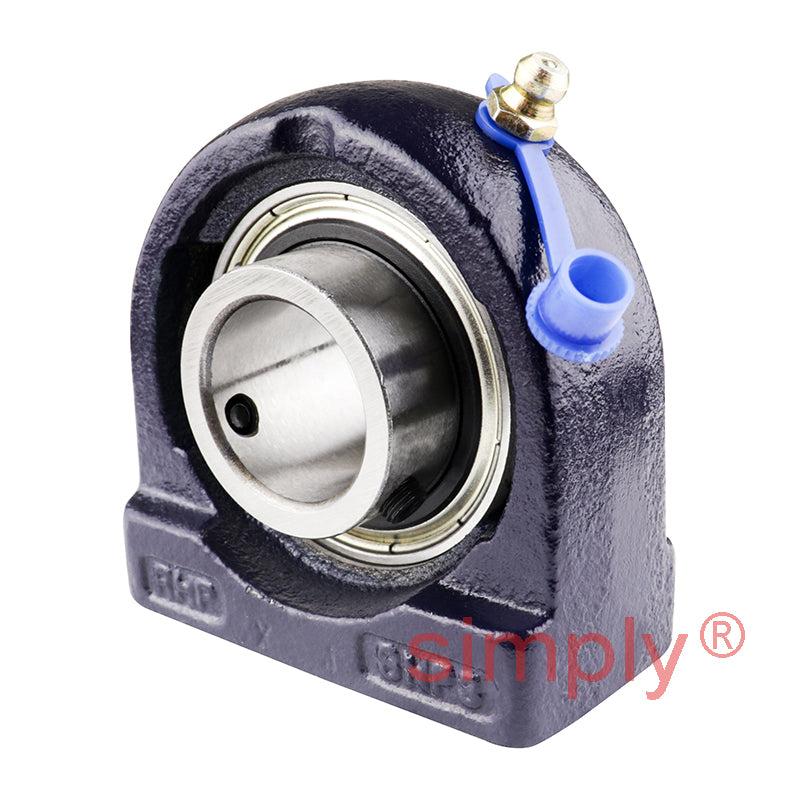

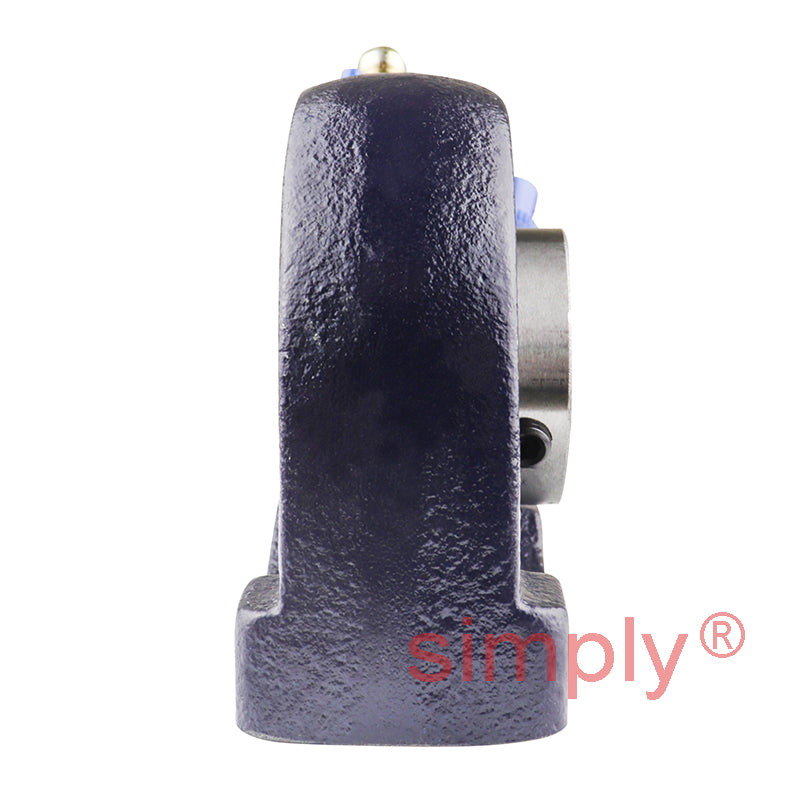

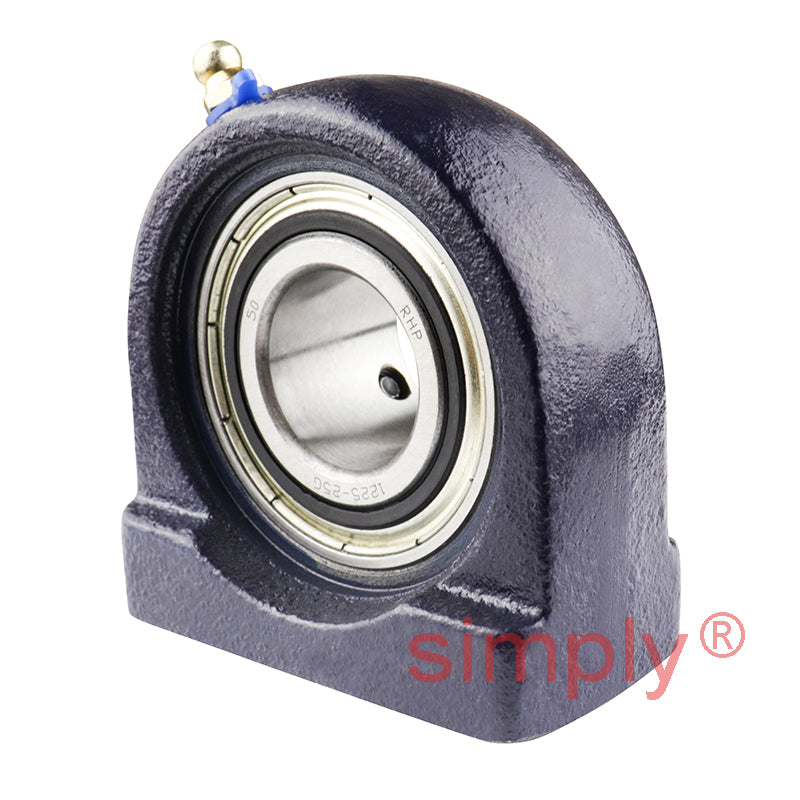

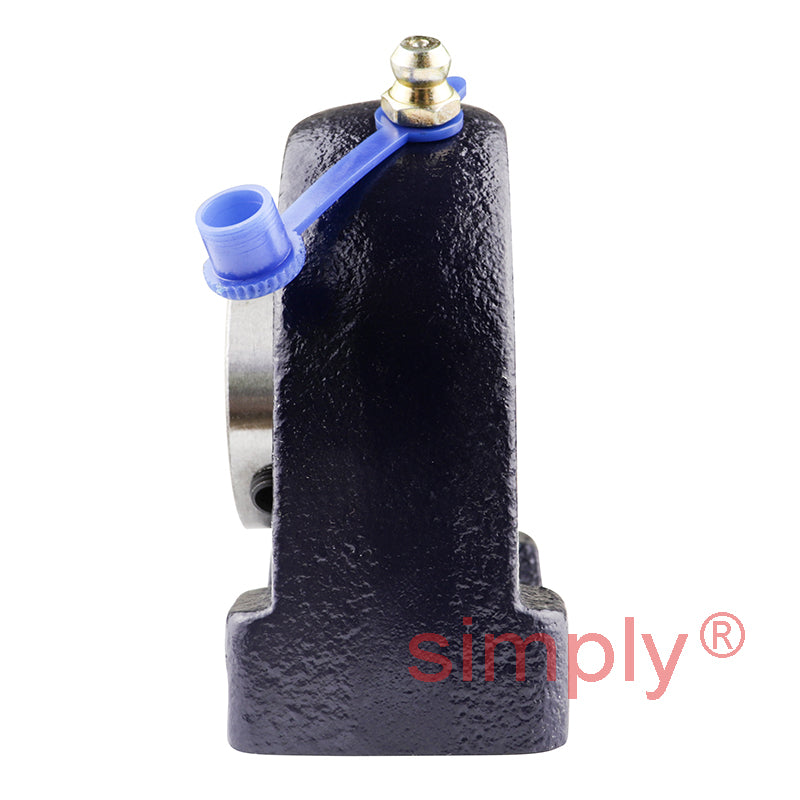

RHP SNP25A Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Grub Screw Flat Back Insert
RHP SNP25A Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Grub Screw Flat Back Insert
Regular price
$60.95
ex VAT
Regular price
Sale price
$60.95
ex VAT
In stock
Price Break
10+
$54.25
19+
$51.20
29+
$50.59
39+
$49.98
49+
$49.37
74+
$48.76
99+
$45.71
199+
$45.10
249+
$44.49
499+
$43.88
999+
$42.67
Couldn't load pickup availability
Description
Description
|
RHP SNP A Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SNP
- Bolt Hole Centres:
- 50.8mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 80mm |
| H | 36.5mm |
| H1 | 13.5mm |
| H2 | 71.5mm |
| J | 50.8mm |
| Threads | M10x1.50 |
| A | 36mm |
| A1 | 25mm |
| B1 | 27.35mm |
| s1 | 7.57mm |
| d1 | 34.01mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
