SKU: SRB15/2_15/30-TRAN

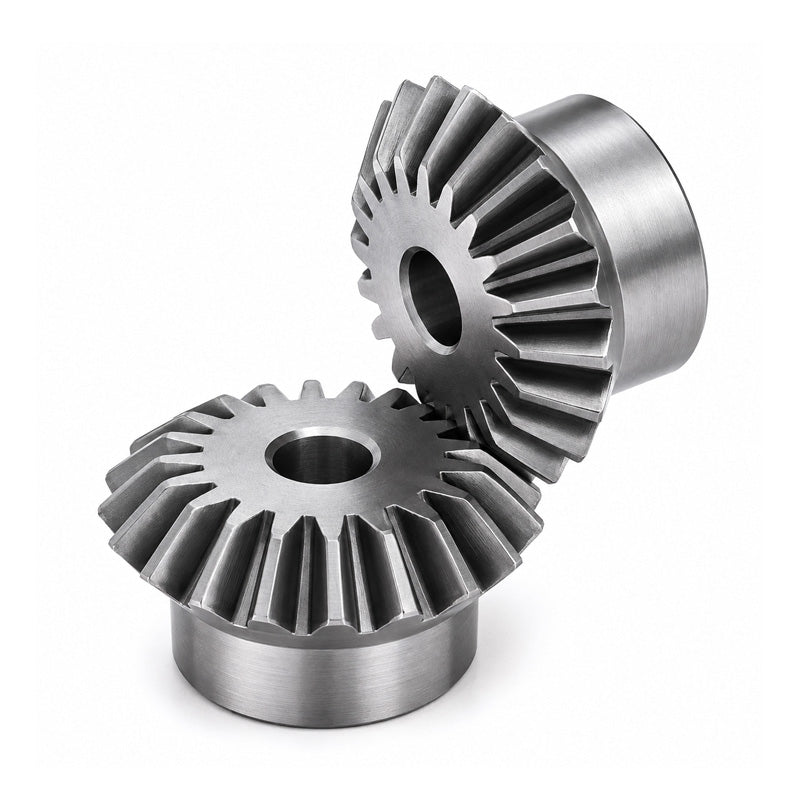

SRB15/2 15/30 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 1.5 MOD 20deg Pressure Angle
SRB15/2 15/30 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 1.5 MOD 20deg Pressure Angle
Regular price
$92.61
ex VAT
Regular price
Sale price
$92.61
ex VAT
Equivalent to: SRB15/2
In stock
Price Break
10+
$82.42
19+
$77.79
29+
$76.87
39+
$75.94
49+
$75.01
74+
$74.09
99+
$69.46
199+
$68.53
249+
$67.61
499+
$66.68
999+
$64.83
Couldn't load pickup availability
Description
Description
Equivalent: SRB15/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 8mm / G2: 8mm
- Number of Teeth:
- 15/30
- Pitch Circle Diameter:
- G1: 26.1mm / G2: 45.9mm
Technical
Technical
| Gear 1 - Pitch Module | 1.5 |
|---|---|
| Gear 1 - No. Teeth | 15 |
| Gear 1 - dp | 22.5mm |
| Gear 1 - A+V | 35mm |
| Gear 1 - dm | 19.3mm |
| Gear 1 - Bore | 8mm |
| Gear 1 - F | 9mm |
| Gear 1 - A | 21.1mm |
| Gear 1 - de | 26.1mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 11.9mm |
| Gear 2 - Pitch Module | 1.5 |
| Gear 2 - No. Teeth | 30 |
| Gear 2 - dp | 45mm |
| Gear 2 - A+V | 32mm |
| Gear 2 - dm | 32.3mm |
| Gear 2 - Bore | 8mm |
| Gear 2 - F | 9mm |
| Gear 2 - A | 25.2mm |
| Gear 2 - de | 45.9mm |
| Gear 2 - S | 2.2mm |
| Gear 2 - Lm | 16mm |
