SKU: SRB20/2_16/32-TRAN

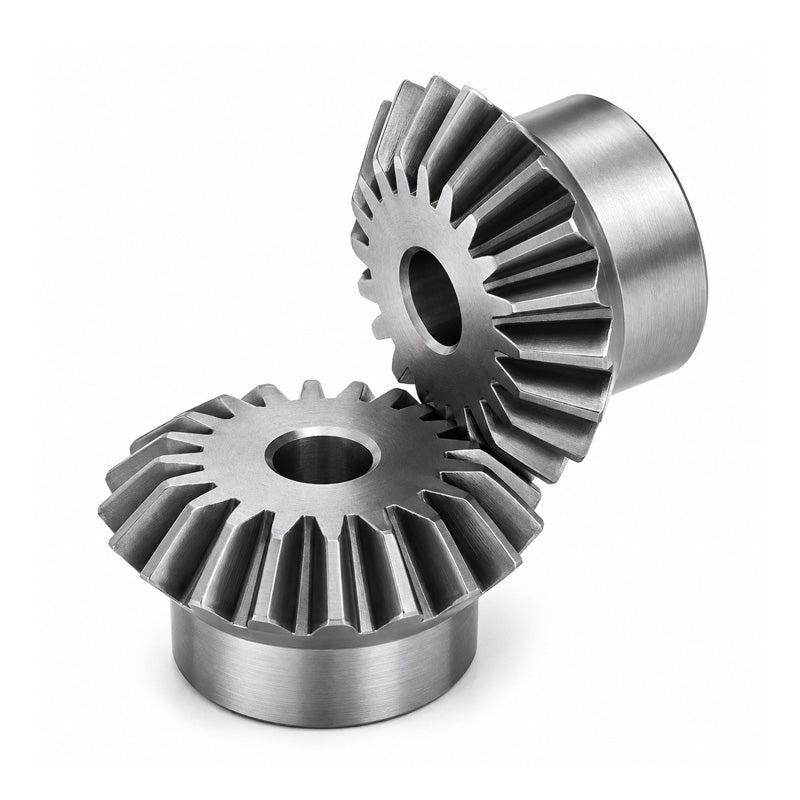

SRB20/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 2.0 MOD 20deg Pressure Angle
SRB20/2 16/32 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 2.0 MOD 20deg Pressure Angle
Regular price
$114.17
ex VAT
Regular price
Sale price
$114.17
ex VAT
Equivalent to: SRB20/2
In stock
Price Break
10+
$101.61
19+
$95.90
29+
$94.76
39+
$93.62
49+
$92.48
74+
$91.34
99+
$85.63
199+
$84.49
249+
$83.34
499+
$82.20
999+
$79.92
Couldn't load pickup availability
Description
Description
Equivalent: SRB20/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 8mm / G2: 12mm
- Number of Teeth:
- 16/32
- Pitch Circle Diameter:
- G1: 36mm / G2: 65.57mm
Technical
Technical
| Gear 1 - Pitch Module | 2.0 |
|---|---|
| Gear 1 - No. Teeth | 16 |
| Gear 1 - dp | 32mm |
| Gear 1 - A+V | 45mm |
| Gear 1 - dm | 24mm |
| Gear 1 - Bore | 8mm |
| Gear 1 - F | 12mm |
| Gear 1 - A | 24.56mm |
| Gear 1 - de | 36mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 11mm |
| Gear 2 - Pitch Module | 2.0 |
| Gear 2 - No. Teeth | 32 |
| Gear 2 - dp | 64mm |
| Gear 2 - A+V | 38mm |
| Gear 2 - dm | 36mm |
| Gear 2 - Bore | 12mm |
| Gear 2 - F | 12mm |
| Gear 2 - A | 28.08mm |
| Gear 2 - de | 65.57mm |
| Gear 2 - S | 4mm |
| Gear 2 - Lm | 13mm |
