SKU: SRB25/2_15/30-TRAN

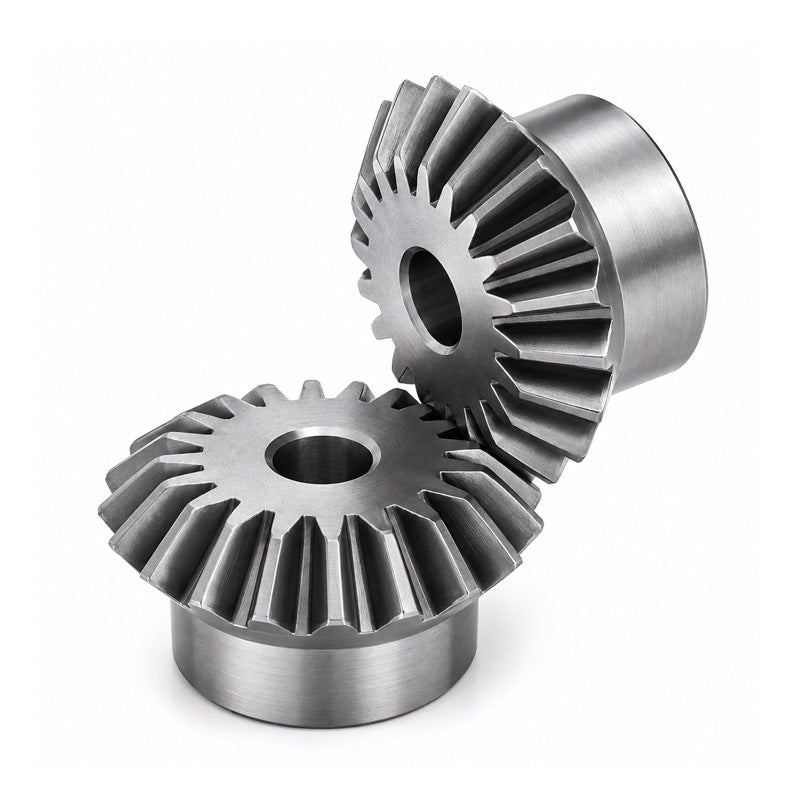

SRB25/2 15/30 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 2.5 MOD 20deg Pressure Angle
SRB25/2 15/30 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 2.5 MOD 20deg Pressure Angle
Regular price
$123.75
ex VAT
Regular price
Sale price
$123.75
ex VAT
Equivalent to: SRB25/2
In stock
Price Break
10+
$110.14
19+
$103.95
29+
$102.71
39+
$101.48
49+
$100.24
74+
$99.00
99+
$92.81
199+
$91.58
249+
$90.34
499+
$89.10
999+
$86.63
Couldn't load pickup availability
Description
Description
Equivalent: SRB25/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 12mm / G2: 16mm
- Number of Teeth:
- 15/30
- Pitch Circle Diameter:
- G1: 43.5mm / G2: 76.5mm
Technical
Technical
| Gear 1 - Pitch Module | 2.5 |
|---|---|
| Gear 1 - No. Teeth | 15 |
| Gear 1 - dp | 37.5mm |
| Gear 1 - A+V | 55mm |
| Gear 1 - dm | 32.3mm |
| Gear 1 - Bore | 12mm |
| Gear 1 - F | 15mm |
| Gear 1 - A | 31.8mm |
| Gear 1 - de | 43.5mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 16.2mm |
| Gear 2 - Pitch Module | 2.5 |
| Gear 2 - No. Teeth | 30 |
| Gear 2 - dp | 75mm |
| Gear 2 - A+V | 45mm |
| Gear 2 - dm | 45.3mm |
| Gear 2 - Bore | 16mm |
| Gear 2 - F | 15mm |
| Gear 2 - A | 33.7mm |
| Gear 2 - de | 76.5mm |
| Gear 2 - S | 3.7mm |
| Gear 2 - Lm | 20mm |
