SKU: SRB30/2_15/30-TRAN

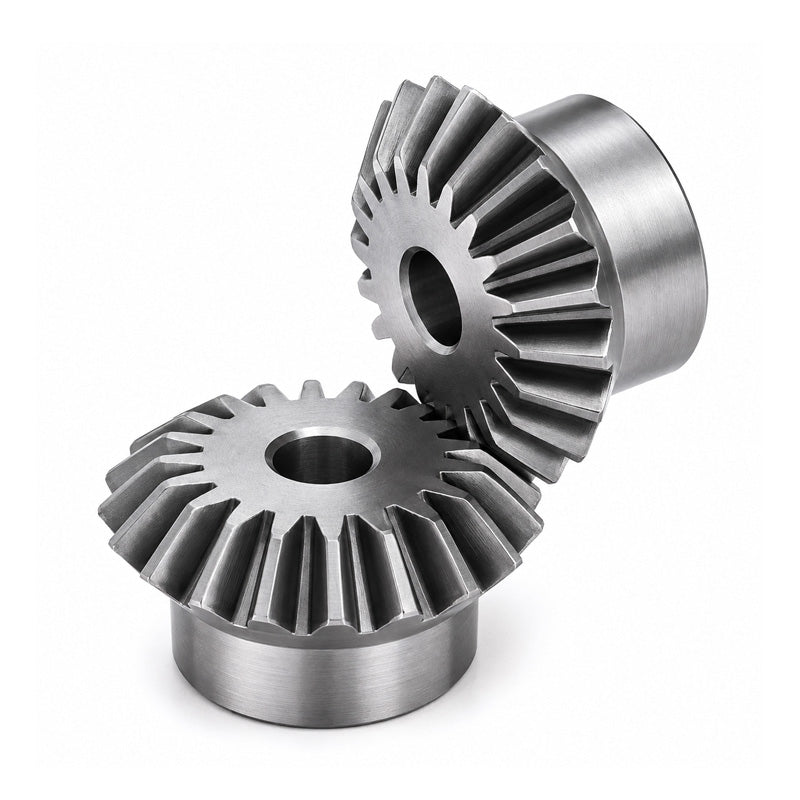

SRB30/2 15/30 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 3.0 MOD 20deg Pressure Angle
SRB30/2 15/30 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 3.0 MOD 20deg Pressure Angle
Regular price
$154.35
ex VAT
Regular price
Sale price
$154.35
ex VAT
Equivalent to: SRB30/2
In stock
Price Break
10+
$137.37
19+
$129.65
29+
$128.11
39+
$126.57
49+
$125.02
74+
$123.48
99+
$115.76
199+
$114.22
249+
$112.68
499+
$111.13
999+
$108.05
Couldn't load pickup availability
Description
Description
Equivalent: SRB30/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 12mm / G2: 16mm
- Number of Teeth:
- 15/30
- Pitch Circle Diameter:
- G1: 52.2mm / G2: 91.8mm
Technical
Technical
| Gear 1 - Pitch Module | 3.0 |
|---|---|
| Gear 1 - No. Teeth | 15 |
| Gear 1 - dp | 45mm |
| Gear 1 - A+V | 66mm |
| Gear 1 - dm | 40.3mm |
| Gear 1 - Bore | 12mm |
| Gear 1 - F | 17mm |
| Gear 1 - A | 37.3mm |
| Gear 1 - de | 52.2mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 19.9mm |
| Gear 2 - Pitch Module | 3.0 |
| Gear 2 - No. Teeth | 30 |
| Gear 2 - dp | 90mm |
| Gear 2 - A+V | 56mm |
| Gear 2 - dm | 55.3mm |
| Gear 2 - Bore | 16mm |
| Gear 2 - F | 17mm |
| Gear 2 - A | 42.1mm |
| Gear 2 - de | 91.8mm |
| Gear 2 - S | 4.1mm |
| Gear 2 - Lm | 25mm |
