SKU: SRBDP12/2_18/36-TRAN

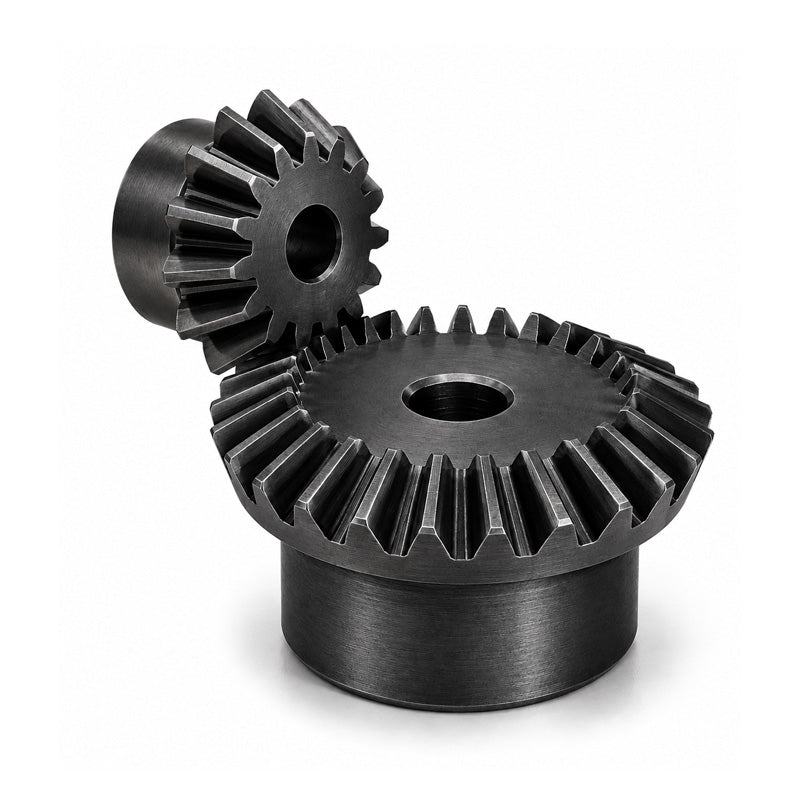

SRBDP12/2 18/36 Tooth Imperial En8 Steel Bevel Gear Set with Grub Screws 2:1 Ratio 12DP 20deg Pressure Angle
SRBDP12/2 18/36 Tooth Imperial En8 Steel Bevel Gear Set with Grub Screws 2:1 Ratio 12DP 20deg Pressure Angle
Regular price
$170.46
ex VAT
Regular price
Sale price
$170.46
ex VAT
Equivalent to: SRBDP12/2
In stock
Price Break
10+
$151.71
19+
$143.19
29+
$141.48
39+
$139.78
49+
$138.07
74+
$136.37
99+
$127.85
199+
$126.14
249+
$124.44
499+
$122.73
999+
$119.32
Couldn't load pickup availability
Description
Description
Equivalent: SRBDP12/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 0.438 inch / G2: 0.75 inch
- Number of Teeth:
- 18/36
- Pitch Circle Diameter:
- G1: 1.701 inch / G2: 3.049 inch
Technical
Technical
| Gear 1 - DP | 12 |
|---|---|
| Gear 1 - No. Teeth | 18 |
| Gear 1 - dp | 1.5 inch |
| Gear 1 - A+V | 2.187 inch |
| Gear 1 - dm | 1.365 inch |
| Gear 1 - Bore | 0.438 inch |
| Gear 1 - F | 0.5 inch |
| Gear 1 - A | 1.168 inch |
| Gear 1 - de | 1.701 inch |
| Gear 1 - S | 0 inch |
| Gear 1 - Lm | 0.653 inch |
| Gear 2 - DP | 12 |
| Gear 2 - No. Teeth | 36 |
| Gear 2 - dp | 3 inch |
| Gear 2 - A+V | 1.625 inch |
| Gear 2 - dm | 1.875 inch |
| Gear 2 - Bore | 0.75 inch |
| Gear 2 - F | 0.5 inch |
| Gear 2 - A | 1.129 inch |
| Gear 2 - de | 3.049 inch |
| Gear 2 - S | 0.111 inch |
| Gear 2 - Lm | 0.598 inch |
