SKU: ST2.7/16DEC-RHP

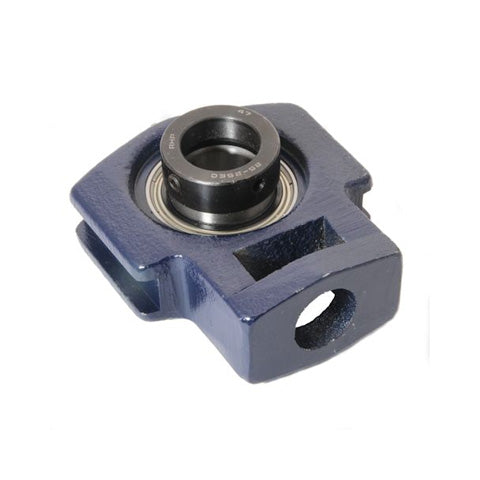

RHP ST2-7/16DEC Cast Iron Take Up Unit and 2-7/16 inch Bore Insert
RHP ST2-7/16DEC Cast Iron Take Up Unit and 2-7/16 inch Bore Insert
Regular price
$242.07
ex VAT
Regular price
Sale price
$242.07
ex VAT
In stock
Price Break
10+
$215.44
19+
$203.34
29+
$200.92
39+
$198.50
49+
$196.08
74+
$193.66
99+
$181.55
199+
$179.13
249+
$176.71
499+
$174.29
999+
$169.45
Couldn't load pickup availability
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- ST
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 7.559 inch |
| L1 | 4.685 inch |
| L2 | 0.748 inch |
| L3 | 1.26 inch |
| L4 | 3.839 inch |
| L5 | 2.756 inch |
| H | 5.748 inch |
| H1 | 3.976 inch |
| H2 | 2.52 inch |
| H3 | 5.118 inch |
| N | 1.378 inch |
| A | 2.5 inch |
| A1 | 1.831 inch |
| A2 | 1.063 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.312 inch |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 5.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-7/16DECG+insonly">1060-2-7/16DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
