SKU: SY55TF/VA228-SKF

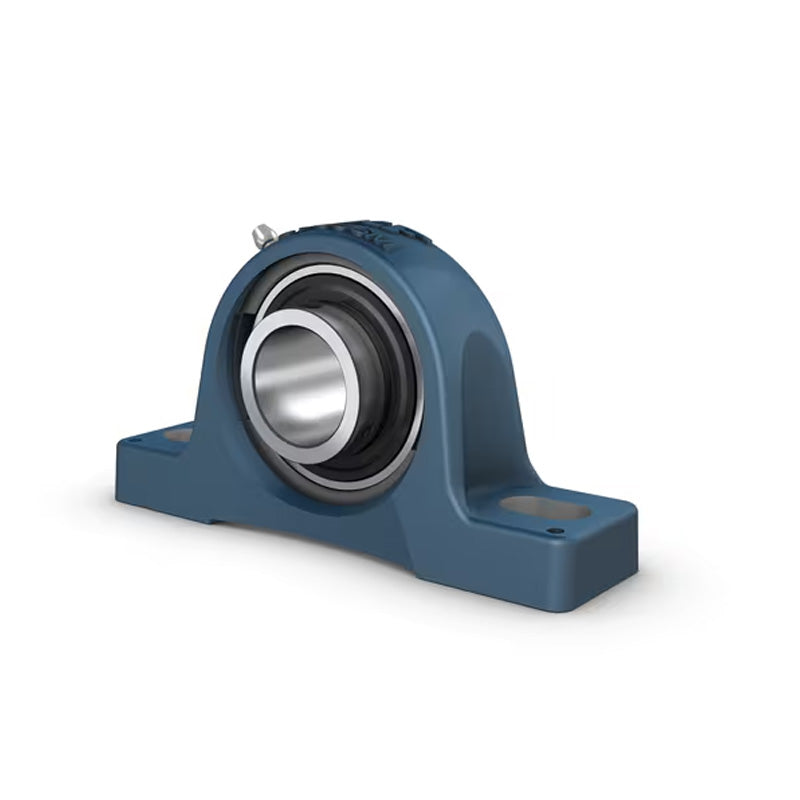

SKF SY55TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 55mm
SKF SY55TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 55mm
Regular price
$750.19
ex VAT
Regular price
Sale price
$750.19
ex VAT
In stock
Price Break
10+
$667.67
19+
$630.16
29+
$622.66
39+
$615.16
49+
$607.65
74+
$600.15
99+
$562.64
199+
$555.14
249+
$547.64
499+
$540.14
999+
$525.13
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 55mm |
|---|---|
| A | 60mm |
| B | 55.6mm |
| H | 127mm |
| H1 | 63.5mm |
| H2 | 23.8mm |
| J | 171.5mm |
| L | 219mm |
| N | 27.5mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 33.4mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 29 kN |
| Weight | 3.59 kg |
