SKU: TA.1215.Z-EU

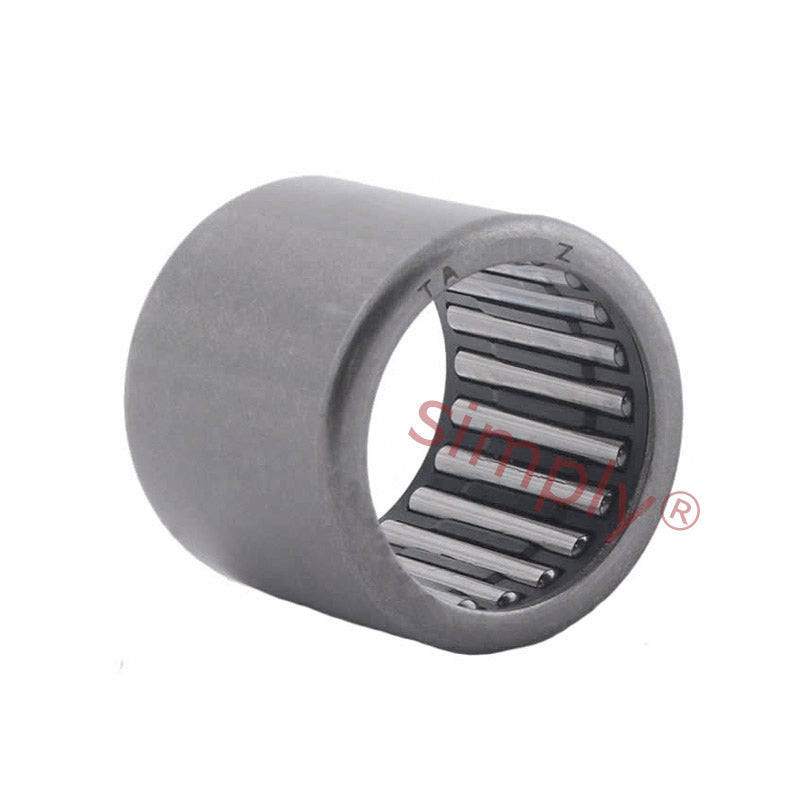

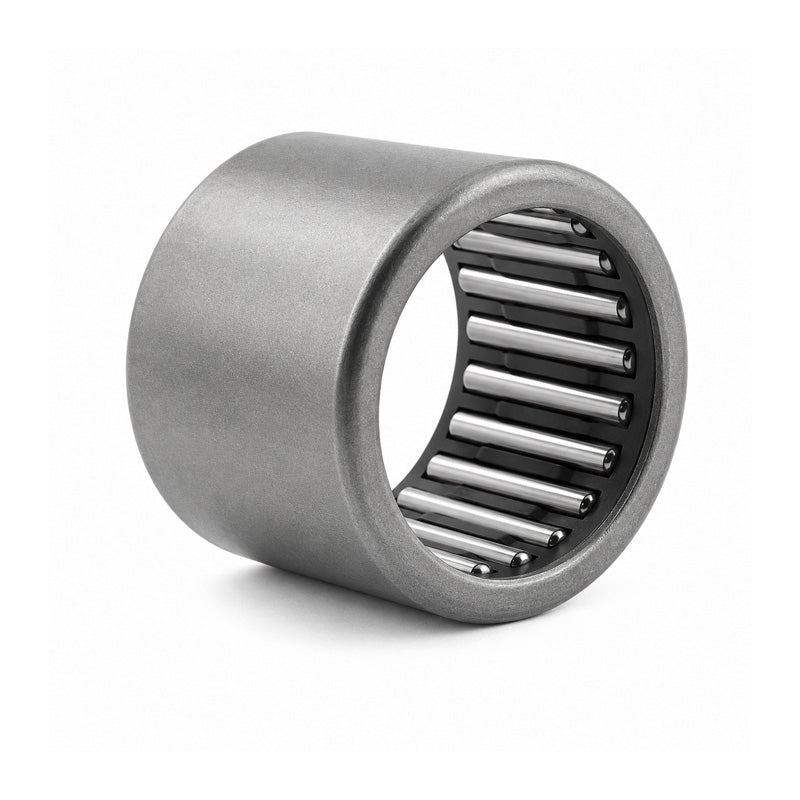

Premier Budget TA1215Z Needle Roller Bearing Open End Type 12x19x15mm
Premier Budget TA1215Z Needle Roller Bearing Open End Type 12x19x15mm
Regular price
$10.19
ex VAT
Regular price
Sale price
$10.19
ex VAT
Equivalent to: HMK1215
In stock
Price Break
10+
$9.07
19+
$8.56
29+
$8.46
39+
$8.36
49+
$8.25
74+
$8.15
99+
$7.64
199+
$7.54
249+
$7.44
499+
$7.34
999+
$7.13
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1215
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 19mm
- Width:
- 15mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 19mm |
| C | 15mm |
| Dynamic load | 7440N |
| Static load | 8320N |
| Inner race | IRT815 |
| Weight | 13.1g |
