SKU: TA.1220.Z-EU

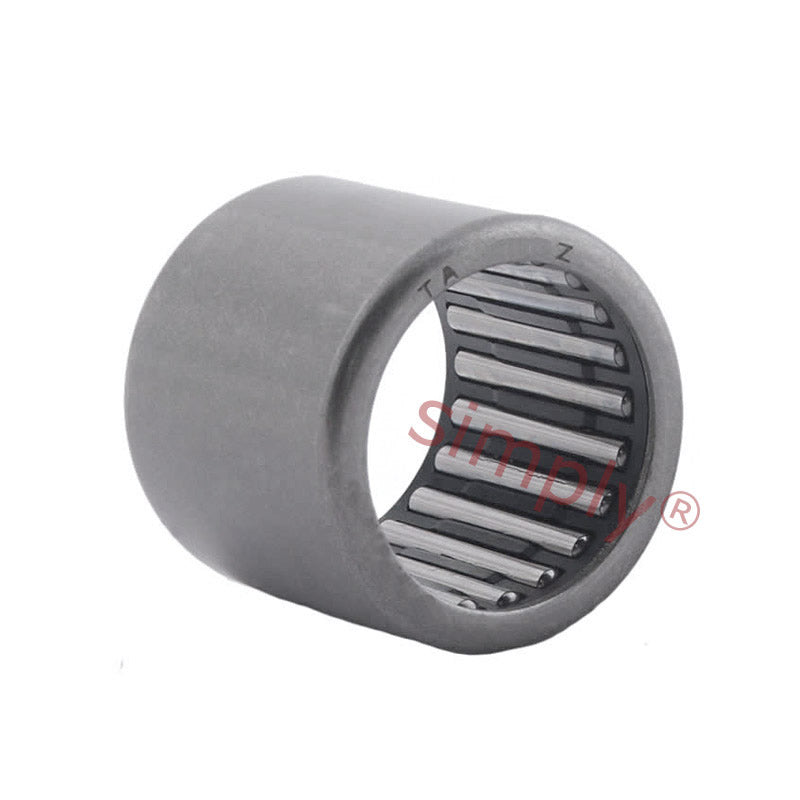

Premier Budget TA1220Z Needle Roller Bearing Open End Type 12x19x20mm
Premier Budget TA1220Z Needle Roller Bearing Open End Type 12x19x20mm
Regular price
$10.40
ex VAT
Regular price
Sale price
$10.40
ex VAT
Equivalent to: HMK1220
In stock
Price Break
10+
$9.26
19+
$8.74
29+
$8.63
39+
$8.53
49+
$8.42
74+
$8.32
99+
$7.80
199+
$7.70
249+
$7.59
499+
$7.49
999+
$7.28
Couldn't load pickup availability
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1220
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 19mm
- Width:
- 20mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 19mm |
| C | 20mm |
| Dynamic load | 10700N |
| Static load | 13300N |
| Weight | 17.3g |
